The RS Series Commercial Refrigerated Cake Display Cabinet combines a modern glass showcase with a durable steel-frame and stainless-steel layer structure. With a 2–8°C cabinet temperature, R290 refrigerant and Embraco compressor, the series is designed for professional display and refrigerated preservation of cakes, pastries and desserts.
Three sizes—RS-90, RS-120 and RS-150—are available to meet different store layouts and display requirements.
The RS Series uses a large transparent glass display area, allowing customers to clearly see cakes, pastries and desserts from the front.
The clean black lower cabinet combined with the glass showcase creates a modern appearance suitable for contemporary bakeries and cafés.
The product is described as a:
Steel Frame / Stainless Layer
This construction provides a practical balance between structural strength, durability and professional commercial appearance.
The stainless-steel internal layers are also well suited to regular commercial cleaning and maintenance.
The cabinet temperature is specified as:
2–8°C
This refrigerated environment is suitable for displaying appropriate chilled cakes, pastries, desserts and other temperature-sensitive bakery products.
The RS Series specifications prominently identify:
Refrigerant: R290
R290 is a natural refrigerant commonly used in modern commercial refrigeration equipment.
The supplied specifications list an:
Embraco Compressor
This provides a professional refrigeration configuration for commercial cake and dessert display applications.
The RS-150 specification identifies the cooling method as:
Air Cooling
The air-cooling system helps circulate refrigerated air throughout the display cabinet.
The RS Series offers three display lengths:
| Model | Product Size | Cabinet Temperature |
|---|---|---|
| RS-90 | 900 × 620 × 1200mm | 2–8°C |
| RS-120 | 1200 × 620 × 1200mm | 2–8°C |
| RS-150 | 1500 × 620 × 1200mm | 2–8°C |
This allows buyers to select a cabinet based on available floor space and required display frontage.
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet – Steel Frame / Stainless Layer |
| Model | RS-90 |
| Voltage | 220V / 50Hz |
| Power | 680W |
| Refrigerant | R290 |
| Cabinet Temperature | 2–8°C |
| Dimensions | 900 × 620 × 1200mm |
| Compressor | Embraco |
| Packing Dimensions | 1000 × 760 × 1350mm |
| Packing Volume | 1.03 CBM |
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet – Steel Frame / Stainless Layer |
| Model | RS-120 |
| Voltage | 220V / 50Hz |
| Power | 632W |
| Refrigerant | R290 |
| Cabinet Temperature | 2–8°C |
| Dimensions | 1200 × 620 × 1200mm |
| Compressor | Embraco |
| Packing Dimensions | 1300 × 760 × 1350mm |
| Packing Volume | 1.33 CBM |
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet |
| Model | RS-150 |
| Voltage | 220V / 50Hz |
| Power | 920W |
| Refrigerant | R290 |
| Cabinet Temperature | 2–8°C |
| Dimensions | 1500 × 620 × 1200mm |
| Cooling Method | Air Cooling |
| Compressor | Embraco |
| Packing Dimensions | 1600 × 760 × 1350mm |
| Packing Volume | 1.64 CBM |
The RS Series Refrigerated Cake Display Cabinet is designed for commercial bakeries, cake shops, cafés, dessert stores and other food-retail environments requiring both refrigerated preservation and attractive product presentation.

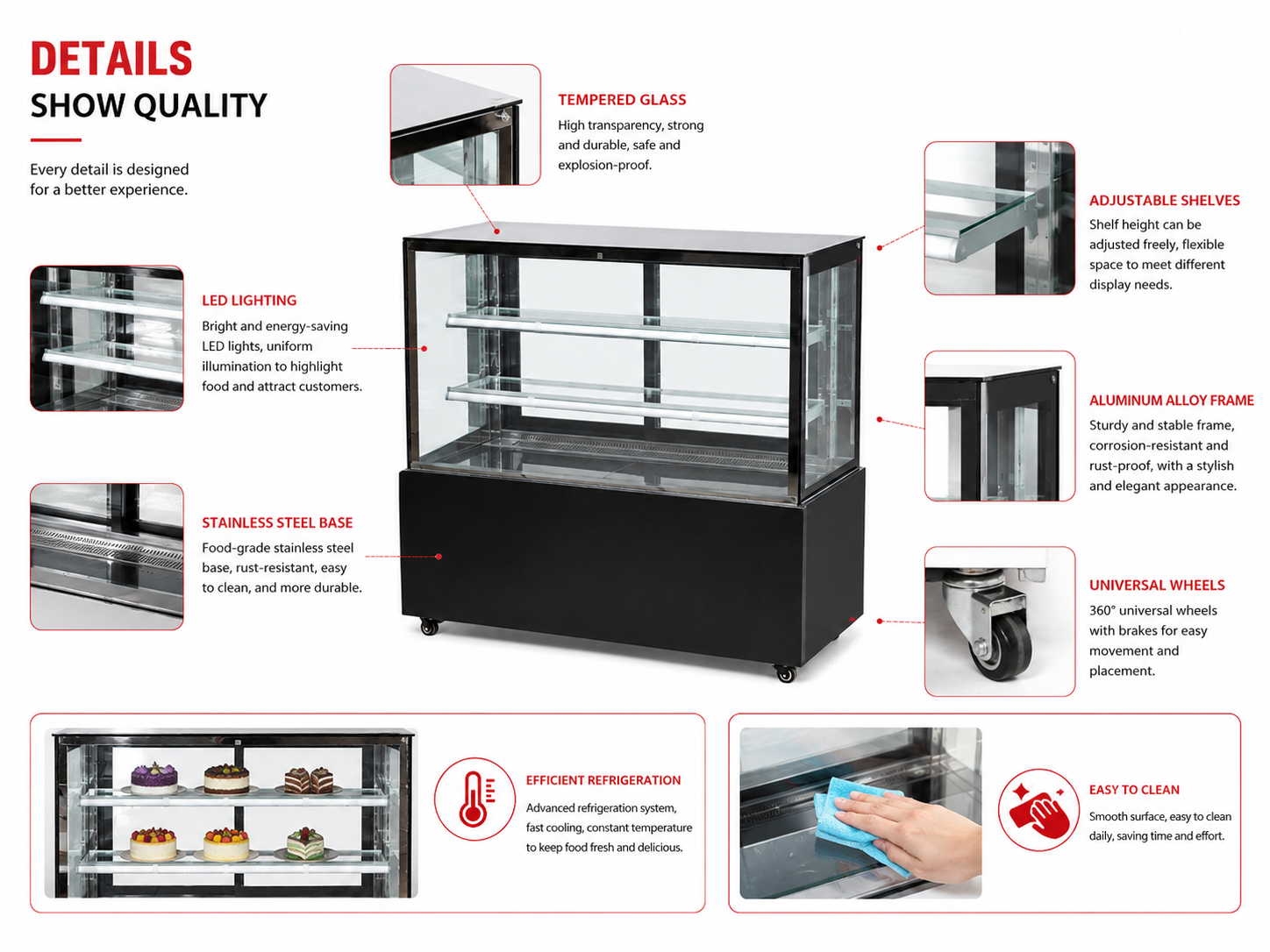

The large glass display area provides customers with a clear view of the products, while the internal stainless-steel layers provide organized multi-level product presentation.
The cabinet maintains a listed temperature of 2–8°C and uses R290 refrigerant. The specifications also list Embraco compressors for the series.
With three available lengths—900mm, 1200mm and 1500mm—the RS Series can be matched to different shop layouts and display requirements.
The RS Series is suitable for:
Suitable products include:
The series uses R290 refrigerant, providing a modern refrigeration configuration.
Provides a chilled environment for suitable cakes and desserts.
The supplied specifications identify Embraco as the compressor brand.
Provides organized multi-level product presentation with a practical commercial material.
The steel-frame structure provides a durable commercial display cabinet construction.
Large glass panels provide clear visibility of products and enhance merchandising.
Available in 900mm, 1200mm and 1500mm display lengths.
The black lower cabinet combined with the transparent glass display creates a clean, contemporary appearance suitable for modern retail environments.
Prepare cakes, pastries and desserts according to their required storage conditions.
Place products neatly on the stainless-steel display layers.
Connect the cabinet to the 220V/50Hz power supply and start the refrigeration system.
For models equipped with the specified air-cooling configuration, refrigerated air circulates through the display area.
The cabinet maintains the specified 2–8°C refrigerated environment.
Customers can view the products through the large glass showcase.
Regularly clean the glass, shelves and internal surfaces to maintain food hygiene and a professional display appearance.
The RS Series includes:
All three models are specified at 2–8°C.
The supplied specifications list R290 refrigerant.
The specifications list an Embraco compressor.
The RS-150 is specifically listed with air cooling.
680W
632W
920W
The RS-150, with dimensions of 1500×620×1200mm.
The RS-90 is the most compact option, with a 900mm cabinet length.
The RS-150 provides the longest 1500mm display frontage and is suitable for stores requiring greater display space.
