DHA Series commercial refrigerated cake display cabinets with 2–8°C temperature control, air cooling and Embraco compressors. Available in 900mm, 1200mm, 1500mm and 2000mm lengths for bakeries, cake shops and cafés.
The DHA Series Commercial Cake Display Cabinets are refrigerated showcase units designed for professional bakeries, cake shops, cafés and dessert stores. Featuring an elegant curved glass display, 2–8°C cabinet temperature and Embraco compressor, the series provides an attractive and reliable solution for displaying cakes, pastries and chilled desserts.
Available in four cabinet lengths from 900mm to 2000mm, the DHA Series can be selected according to store size and display requirements.

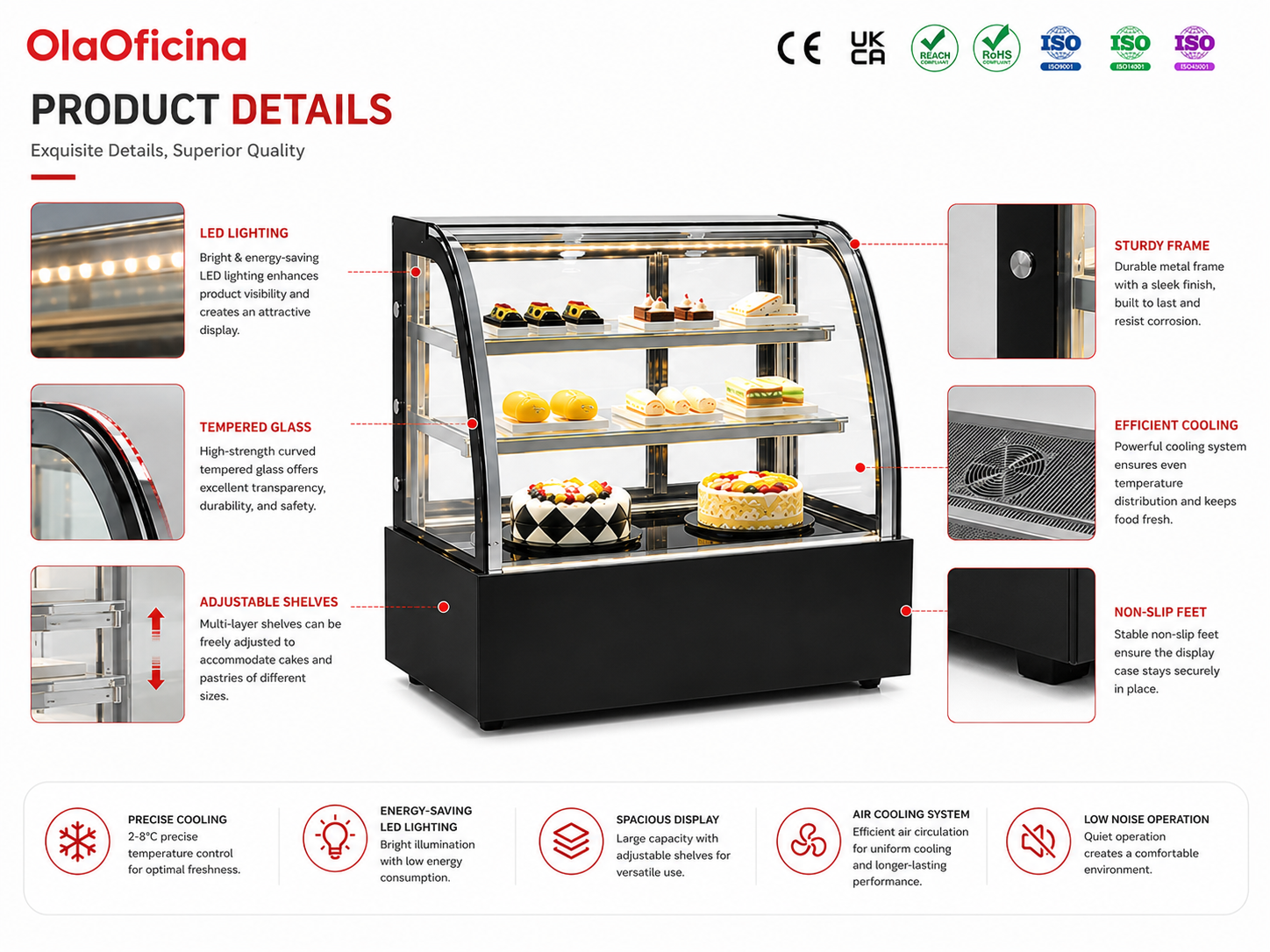

The DHA Series features a modern curved glass front, providing customers with a wide and unobstructed view of displayed cakes and desserts.
The curved glass design also gives the cabinet a premium appearance suitable for modern bakery and café interiors.
The cabinet temperature is specified at:
2–8°C
This refrigerated environment is designed for displaying suitable chilled cakes, pastries, desserts and other temperature-sensitive bakery products.
The DHA-150 and DHA-200 specifications identify the cooling method as air cooling.
The air-cooling system helps circulate cold air inside the cabinet and maintain a suitable refrigerated display environment.
The supplied specifications list an Embraco compressor for the DHA Series.
This provides a professional refrigeration configuration suitable for commercial cake and pastry display applications.

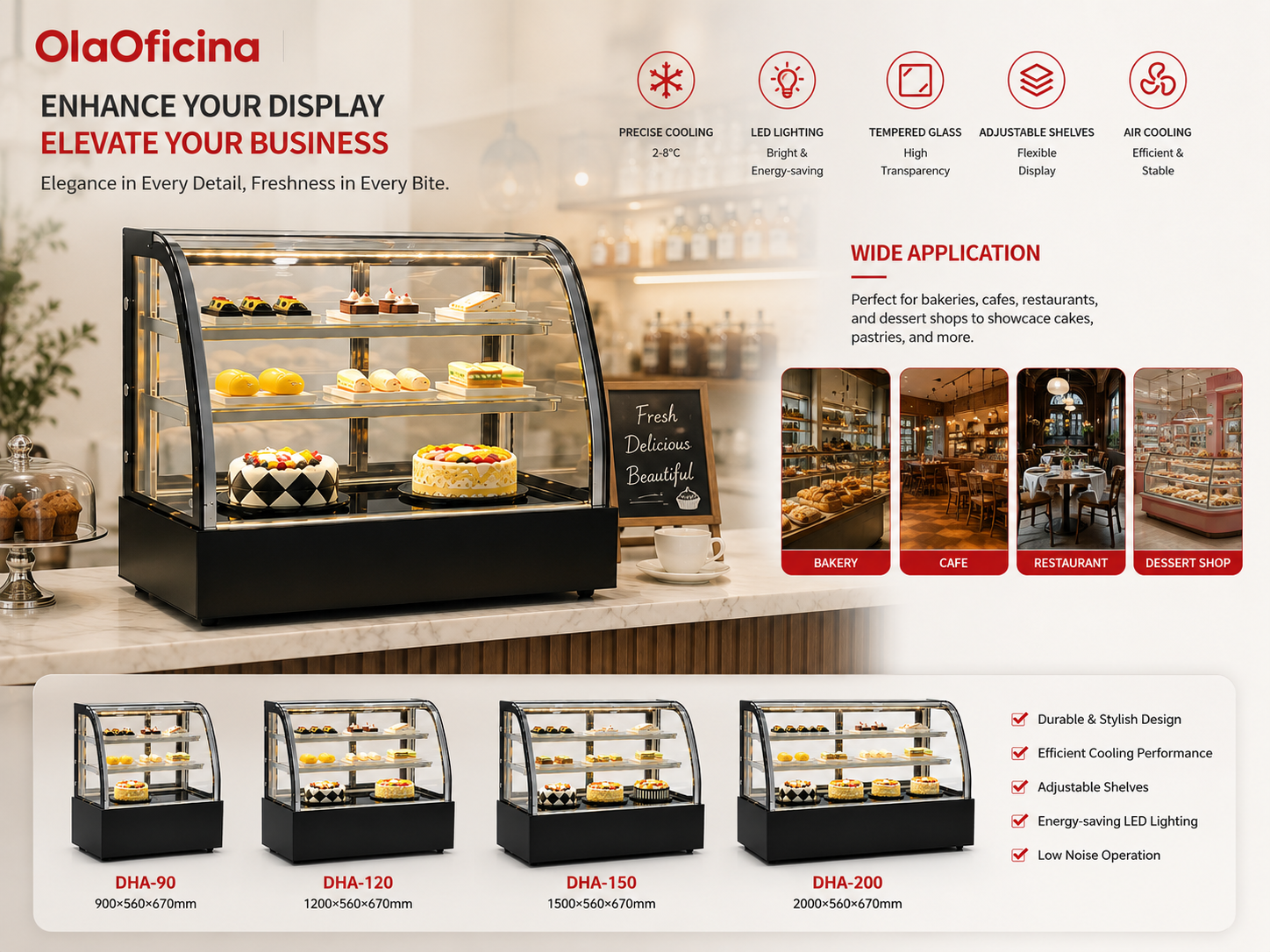

The series provides four cabinet sizes:
| Model | Cabinet Length | Dimensions |
|---|---|---|
| DHA-90 | 900mm | 900 × 620 × 1200mm |
| DHA-120 | 1200mm | 1200 × 620 × 1200mm |
| DHA-150 | 1500mm | 1500 × 620 × 1200mm |
| DHA-200 | 2000mm | 2000 × 620 × 1200mm |
This allows buyers to select a cabinet according to available shop space and required display capacity.
The long horizontal display configuration is suitable for arranging multiple cakes, pastries and desserts side by side.
The DHA-200 provides a 2000mm-long cabinet body, making it particularly suitable for larger bakeries and high-volume retail environments.
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet |
| Model | DHA-90 |
| Voltage | 220V / 50Hz |
| Power | 680W |
| Cabinet Temperature | 2–8°C |
| Dimensions | 900 × 620 × 1200mm |
| Compressor | Embraco |
| Packing Dimensions | 1000 × 800 × 1350mm |
| Packing Volume | 1.08 CBM |
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet |
| Model | DHA-120 |
| Voltage | 220V / 50Hz |
| Power | 480W |
| Cabinet Temperature | 2–8°C |
| Dimensions | 1200 × 620 × 1200mm |
| Compressor | Embraco |
| Packing Dimensions | 1300 × 800 × 1350mm |
| Packing Volume | 1.40 CBM |
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet |
| Model | DHA-150 |
| Voltage | 220V / 50Hz |
| Power | 480W |
| Cabinet Temperature | 2–8°C |
| Dimensions | 1500 × 620 × 1200mm |
| Refrigerant | R134A |
| Cooling Method | Air Cooling |
| Compressor | Embraco |
| Packing Dimensions | 1600 × 760 × 1300mm |
| Packing Volume | 1.58 CBM |
| Item | Specification |
|---|---|
| Product Name | Cake Cabinet |
| Model | DHA-200 |
| Voltage | 220V / 60Hz |
| Power | 680W |
| Cabinet Temperature | 2–8°C |
| Dimensions | 2000 × 620 × 1200mm |
| Refrigerant | R134A |
| Cooling Method | Air Cooling |
| Compressor | Embraco |
| Packing Dimensions | 2100 × 720 × 1300mm |
| Packing Volume | 1.97 CBM |
The DHA Series Refrigerated Cake Display Cabinet combines professional refrigeration with a visually appealing curved-glass showcase design.
The cabinet maintains a listed temperature of 2–8°C, creating a chilled environment for suitable cakes, pastries and desserts. The transparent curved-glass structure provides excellent product visibility, allowing customers to easily view the displayed products.
With four available sizes—DHA-90, DHA-120, DHA-150 and DHA-200—the series can accommodate different commercial spaces, from compact cake shops to larger bakery stores.
The refrigeration configuration includes Embraco compressors, while the DHA-150 and DHA-200 specifications list air cooling and R134A refrigerant.
The DHA Series is suitable for:
Suitable products include:
Provides a wide viewing angle and creates an attractive presentation for cakes and desserts.
Maintains a chilled display environment suitable for appropriate refrigerated bakery products.
The specifications list Embraco compressors for the series.
Available from 900mm to 2000mm, allowing businesses to select the appropriate display length.
Provides generous display frontage for arranging multiple products in an organized manner.
Designed for continuous use in professional cake shops, bakeries, cafés and dessert stores.
DHA-90: Compact display
DHA-120: Medium display
DHA-150: Large display
DHA-200: Extra-large display
Prepare cakes, pastries and desserts according to their required storage conditions.
Place products neatly on the internal display shelves.
Connect the cabinet to the appropriate 220V power supply and activate the refrigeration system.
For the applicable models, the air-cooling system circulates refrigerated air throughout the display area.
The cabinet operates within the specified 2–8°C refrigerated environment.
Customers can clearly view the products through the curved glass front.
Regularly clean the glass, shelves and interior surfaces to maintain food hygiene and an attractive display.
The DHA Series includes:
The listed cabinet temperature is 2–8°C.
The supplied specifications list an Embraco compressor.
The DHA-150 and DHA-200 specifications list air cooling.
The DHA-150 and DHA-200 specifications list R134A refrigerant.
The DHA-90 has a cabinet length of 900mm.
The DHA-200 has a cabinet length of 2000mm.
The main difference is cabinet size and corresponding display capacity:
The DHA-90 or DHA-120 is more suitable where floor space is limited.
The DHA-150 or DHA-200 provides a longer display frontage and is better suited to larger bakeries and stores with higher product-display requirements.
