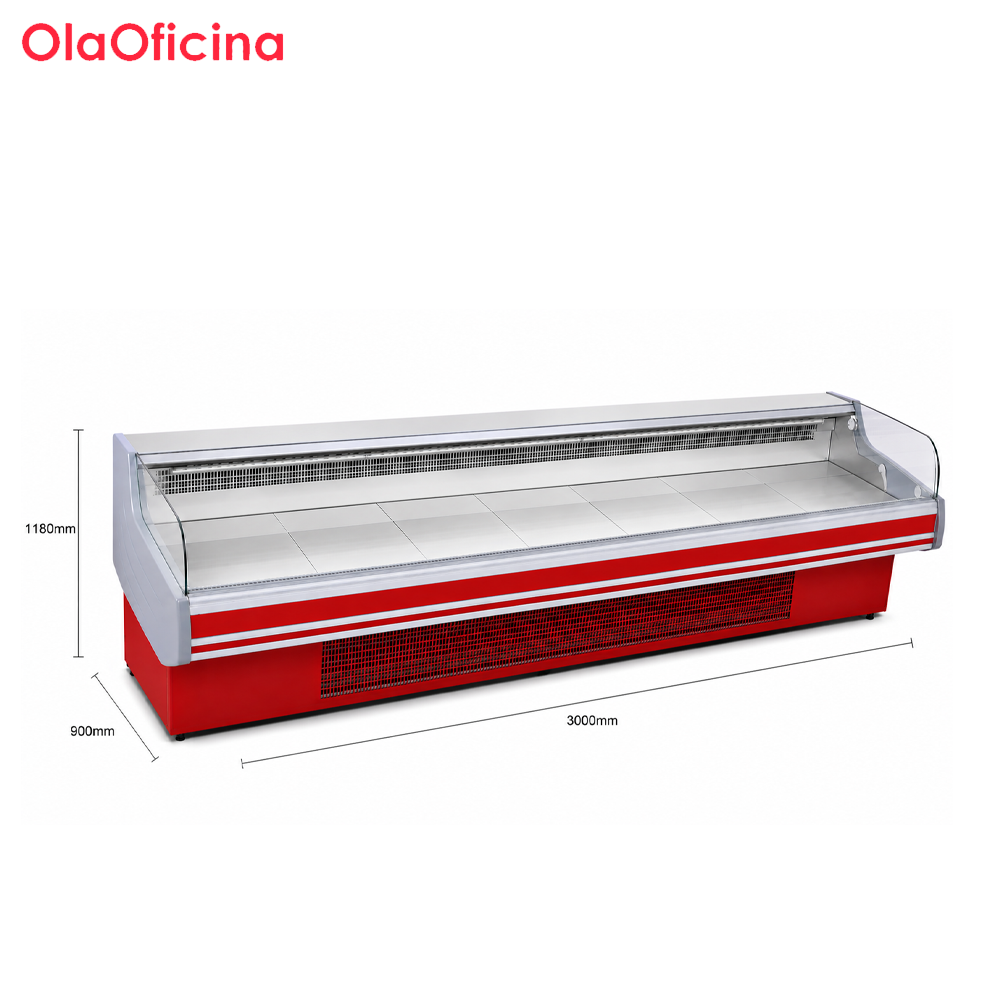

Commercial XLRG Meat Ark Display Refrigerator with 2–8°C temperature range, air cooling and R134A refrigerant. Available in 1200mm, 1500mm, 2000mm, 2500mm and 3000mm models for supermarkets, butcher shops and fresh food stores.
The XLRG Series Commercial Meat Ark Display Refrigerator is an integrated refrigerated display solution designed for fresh meat and chilled food merchandising.
Featuring a red and white commercial design, open display structure, 2–8°C temperature range, air cooling and R134A refrigerant, the XLRG series is available in multiple lengths from 1200mm to 3000mm, making it suitable for different supermarket and retail layouts.
The XLRG series adopts an integrated machine design, combining the refrigeration system and display cabinet into one compact unit.
This makes the cabinet convenient for commercial retail environments where a complete, ready-to-use refrigerated display solution is required.
The open-top display structure provides a wide merchandising area for fresh meat and chilled products.
Benefits include:
The red and white exterior creates a strong commercial visual effect and makes the display cabinet easy to identify in supermarket fresh-food sections.
The color combination is particularly suitable for:
The XLRG series is specified with a 2–8°C temperature range, making it suitable for chilled fresh-food merchandising.
Typical applications include:
Cooling Way: Air Cooling
The air-cooling system is designed for commercial refrigerated display applications and helps maintain the chilled environment throughout the display cabinet.

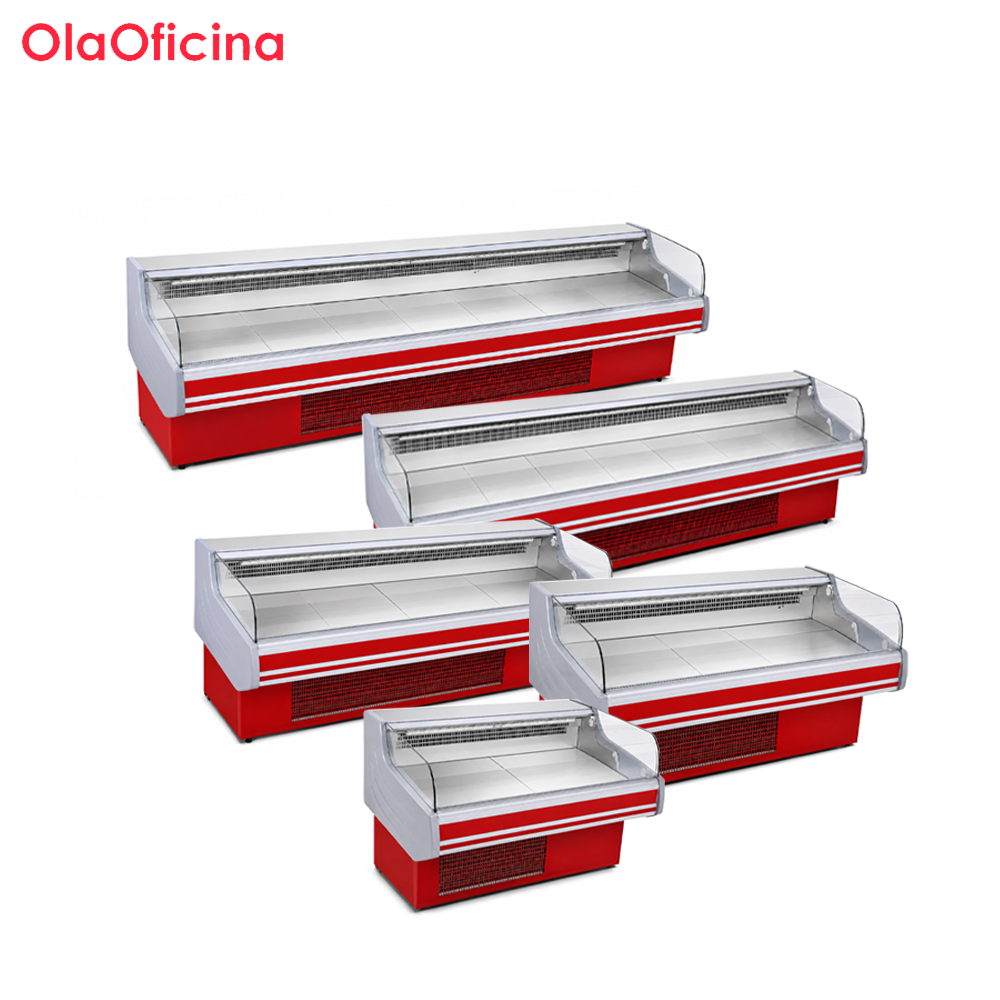

One of the main advantages of the XLRG series is its wide range of cabinet lengths.
| Model | Cabinet Dimension | Input Power | Packing Dimension | Packing Volume |
|---|---|---|---|---|

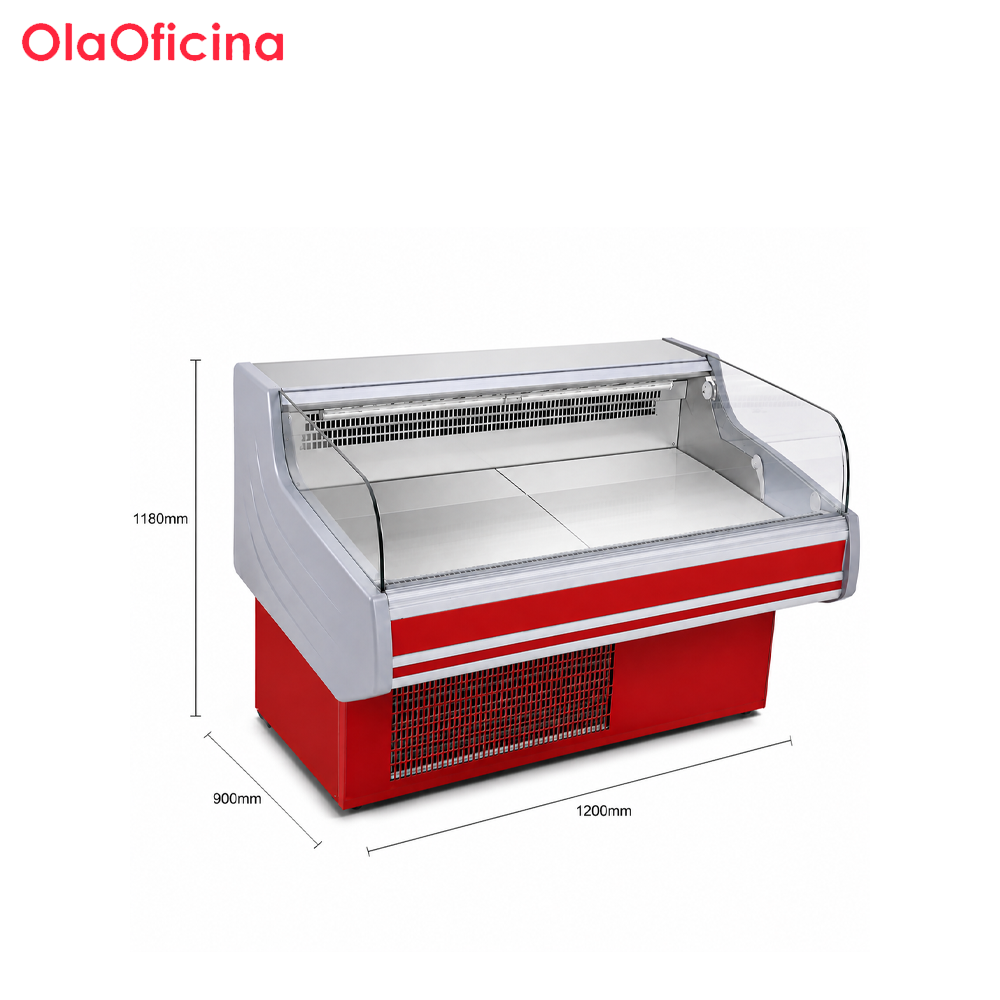

| XLRG-12 | 1200 × 1180 × 900mm | 450W | 1250 × 1230 × 1000mm | 1.54 m³ |

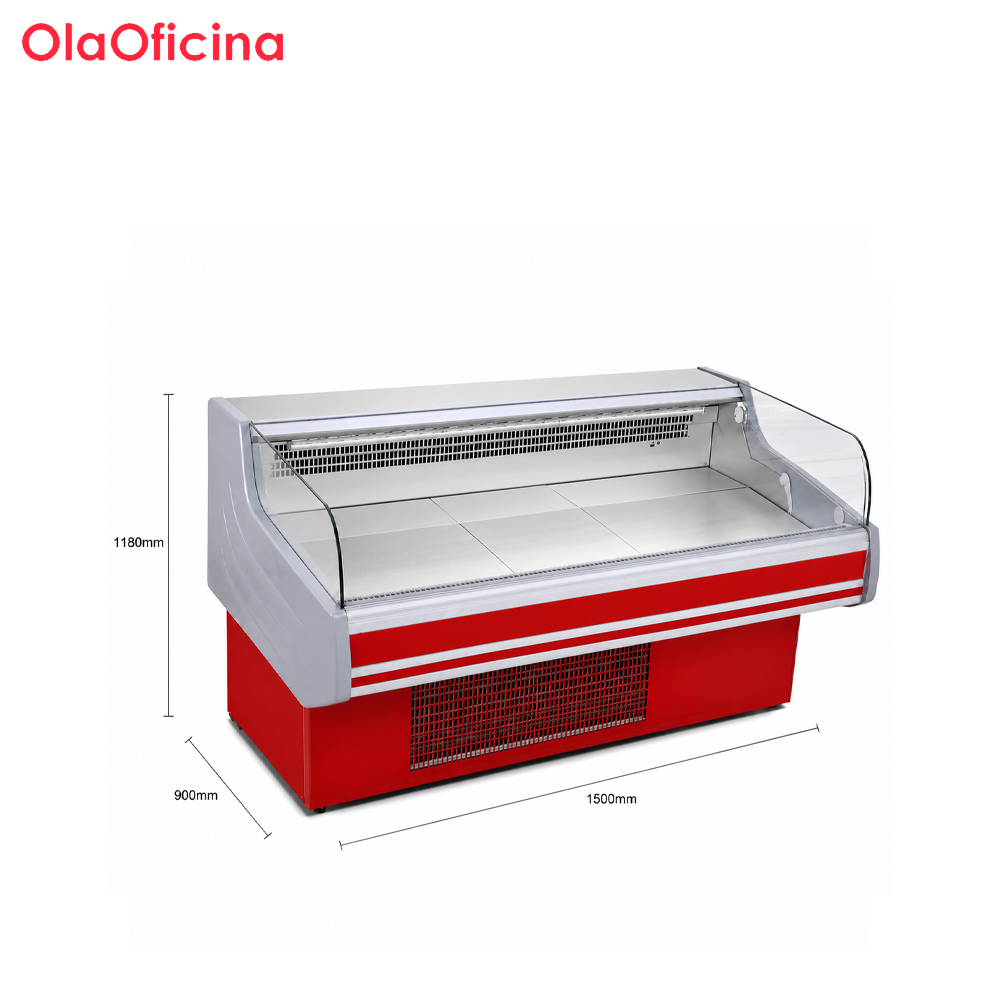

| XLRG-15 | 1500 × 1180 × 900mm | 580W | 1550 × 1230 × 1000mm | 1.91 m³ |

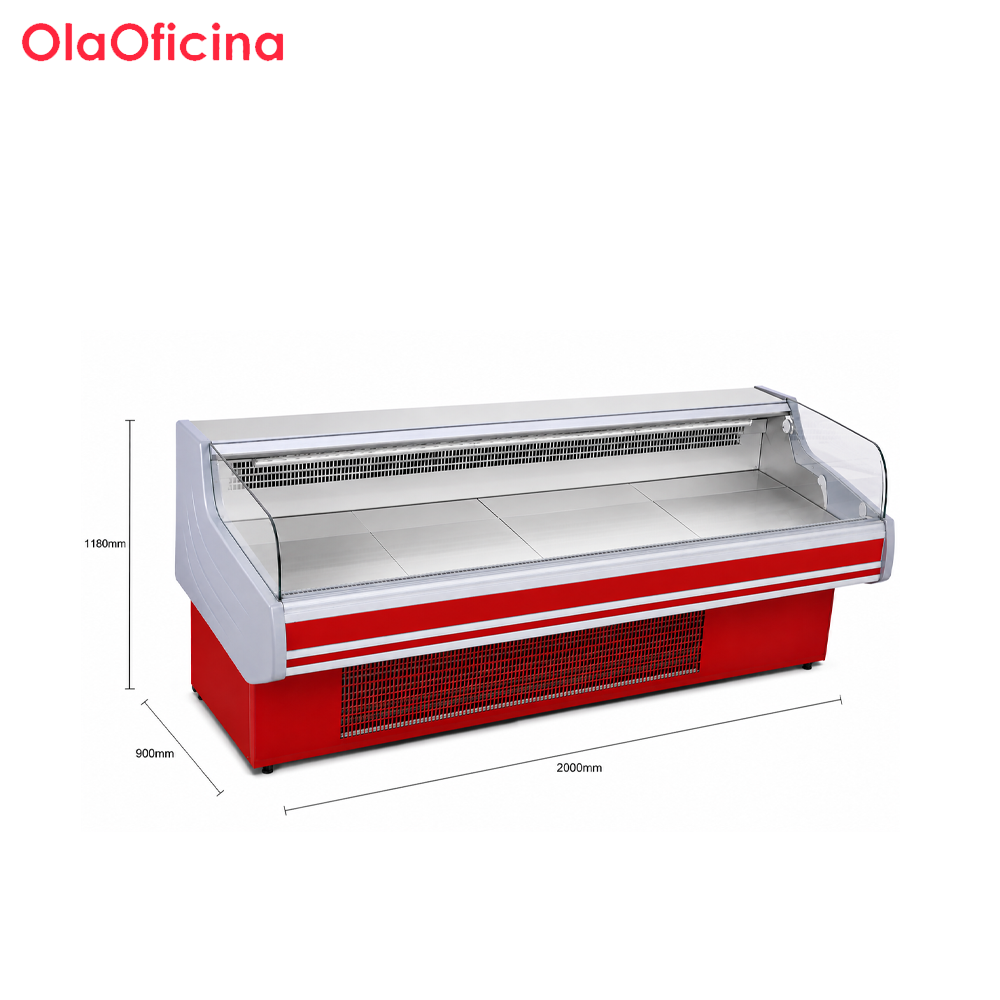

| XLRG-20 | 2000 × 1180 × 900mm | 750W | 2050 × 1230 × 1000mm | 2.52 m³ |

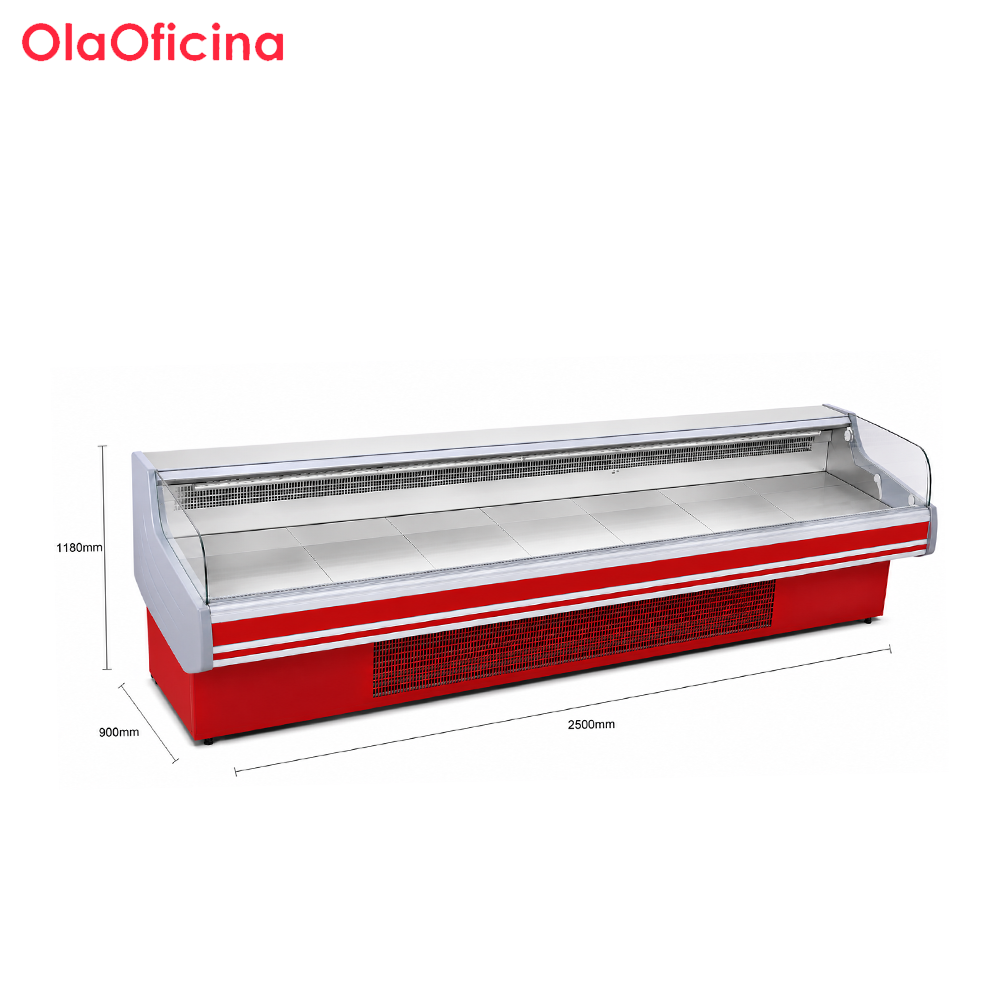

| XLRG-25 | 2500 × 1180 × 900mm* | 1100W | 2550 × 1230 × 1000mm | 3.14 m³ |
| XLRG-30 | 3000 × 1180 × 900mm | 1100W | 3050 × 1230 × 1000mm | 3.75 m³ |
*The supplied specification image shows 2500 × 11800 × 900mm for XLRG-25; this appears to be a typographical error, and 2500 × 1180 × 900mm is consistent with the dimensions of the other models and the packing dimensions.
| Item | Specification |
|---|---|
| Product | Meat Ark |
| Model | XLRG-12 |
| Dimension | 1200 × 1180 × 900mm |
| Voltage | 220V / 50Hz |
| Input Power | 450W |
| Temperature Range | 2–8°C |
| Cooling Way | Air Cooling |
| Refrigerant | R134A |
| Description | Integrated Machine |
| Packing Dimension | 1250 × 1230 × 1000mm |
| Packing Volume | 1.54 m³ |
| Item | Specification |
|---|---|
| Product | Meat Ark |
| Model | XLRG-15 |
| Dimension | 1500 × 1180 × 900mm |
| Voltage | 220V / 50Hz |
| Input Power | 580W |
| Temperature Range | 2–8°C |
| Cooling Way | Air Cooling |
| Refrigerant | R134A |
| Description | Integrated Machine |
| Packing Dimension | 1550 × 1230 × 1000mm |
| Packing Volume | 1.91 m³ |
| Item | Specification |
|---|---|
| Product | Meat Ark |
| Model | XLRG-20 |
| Dimension | 2000 × 1180 × 900mm |
| Voltage | 220V / 50Hz |
| Input Power | 750W |
| Temperature Range | 2–8°C |
| Cooling Way | Air Cooling |
| Refrigerant | R134A |
| Description | Integrated Machine |
| Packing Dimension | 2050 × 1230 × 1000mm |
| Packing Volume | 2.52 m³ |
| Item | Specification |
|---|---|
| Product | Meat Ark |
| Model | XLRG-25 |
| Dimension | 2500 × 1180 × 900mm* |
| Voltage | 220V / 50Hz |
| Input Power | 1100W |
| Temperature Range | 2–8°C |
| Cooling Way | Air Cooling |
| Refrigerant | R134A |
| Description | Integrated Machine |
| Packing Dimension | 2550 × 1230 × 1000mm |
| Packing Volume | 3.14 m³ |
| Item | Specification |
|---|---|
| Product | Meat Ark |
| Model | XLRG-30 |
| Dimension | 3000 × 1180 × 900mm |
| Voltage | 220V / 50Hz |
| Input Power | 1100W |
| Temperature Range | 2–8°C |
| Cooling Way | Air Cooling |
| Refrigerant | R134A |
| Description | Integrated Machine |
| Packing Dimension | 3050 × 1230 × 1000mm |
| Packing Volume | 3.75 m³ |
The XLRG Series Meat Ark Display Refrigerator is designed for supermarkets, butcher shops, meat markets and other commercial food-retail environments requiring a spacious refrigerated merchandising area.
Its integrated machine construction combines the refrigeration system with the display cabinet, while the open-top configuration provides convenient access to products and excellent visibility for customers.
The series operates within a 2–8°C temperature range and uses air cooling with R134A refrigerant. Five different lengths—1.2m, 1.5m, 2.0m, 2.5m and 3.0m—allow buyers to match the cabinet to different store layouts and merchandising volumes.
Ideal for fresh meat sections, chilled food departments and large-volume meat merchandising.
Suitable for displaying beef, pork, lamb, poultry and other fresh meat products.
The long display format provides extensive space for organizing different meat categories.
A practical solution for retailers requiring integrated refrigeration and open product presentation.
Refrigeration and display functions are integrated into one cabinet.
Designed for chilled fresh meat and refrigerated food merchandising.
Makes products easy to see and convenient for customer selection.
Provides strong visual recognition in fresh-food retail areas.
Available from 1200mm to 3000mm, supporting both compact and large-scale retail layouts.
Designed for commercial refrigerated display applications.
Specified with R134A refrigerant in the supplied product data.
