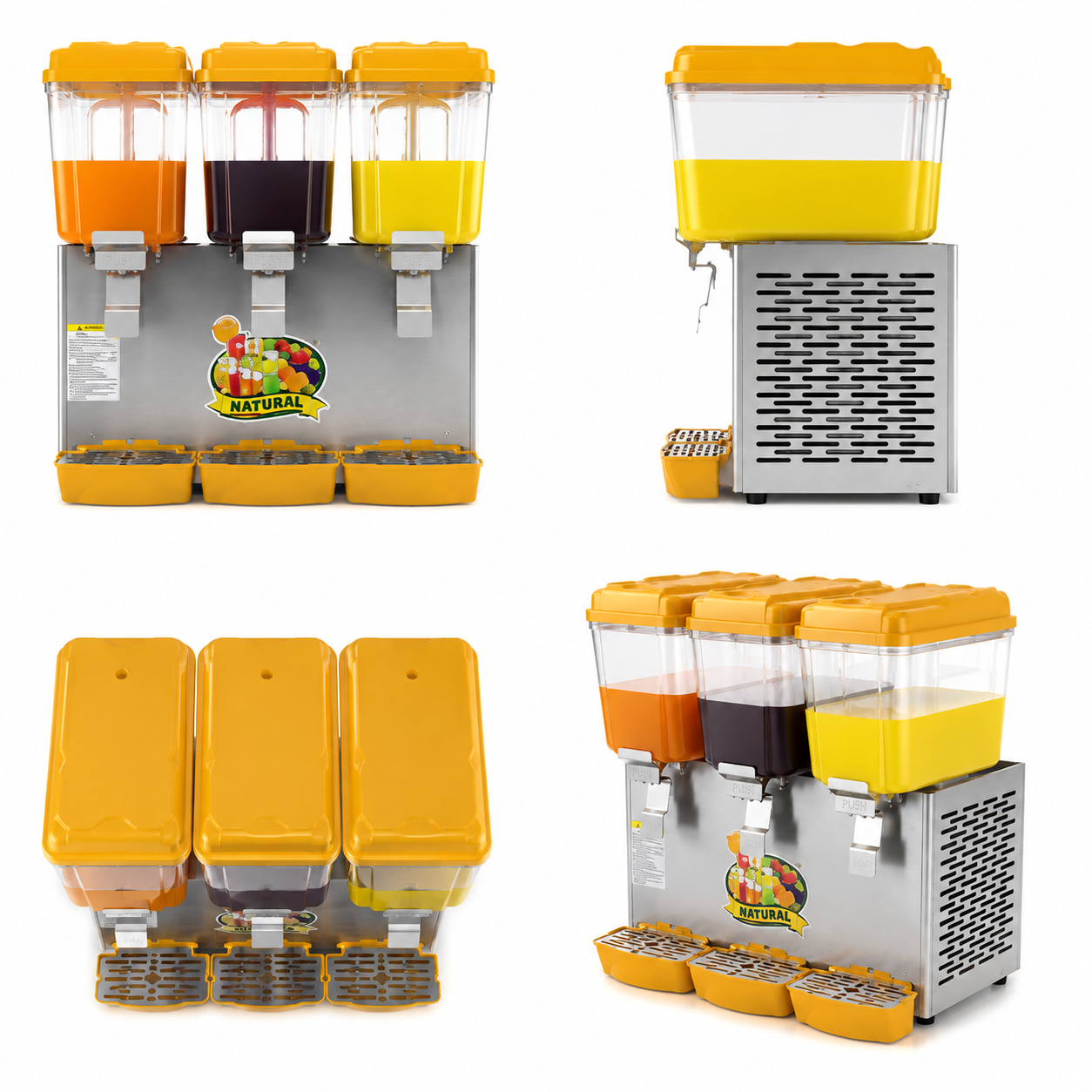

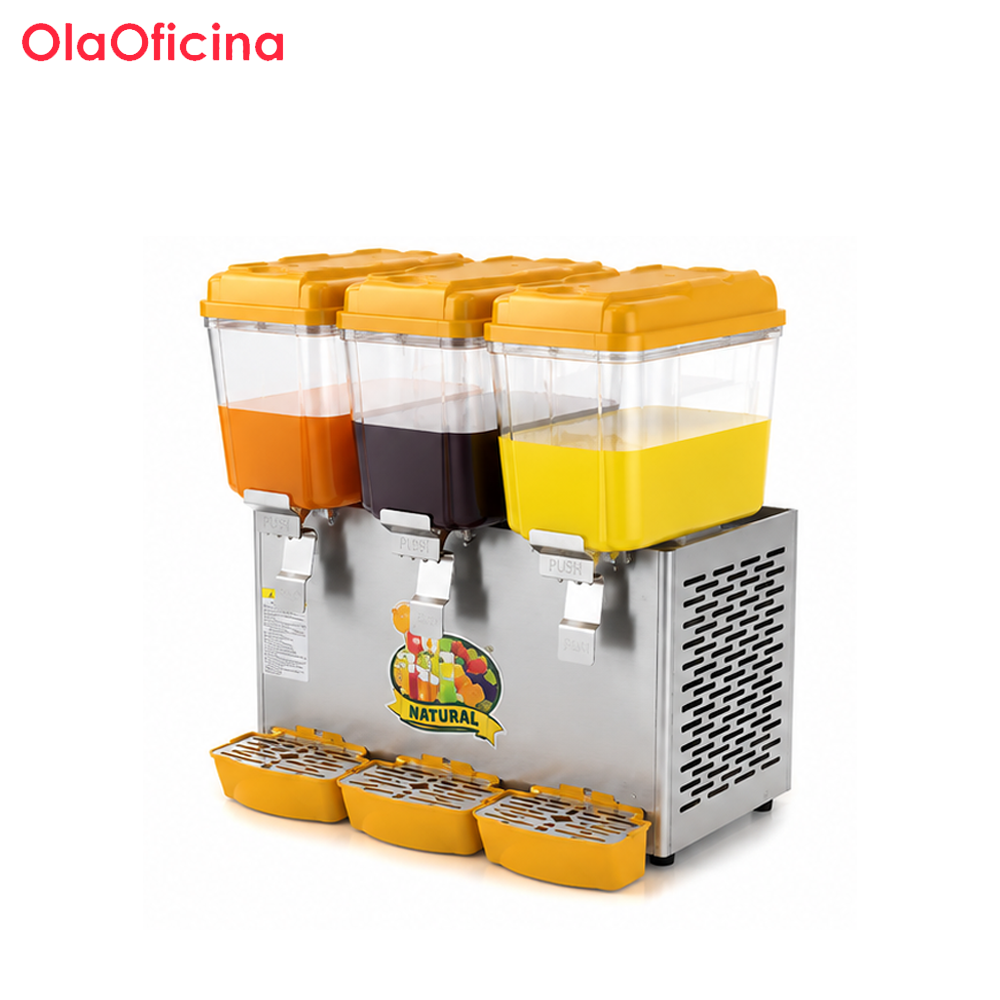

The Commercial Agitator Type Hot & Cold Drinks Machine DN338 / DN338A is a professional three-tank beverage dispenser designed for high-volume commercial beverage service.
With three independent 16L beverage tanks, the machine can serve up to three different beverages simultaneously. The DN338 supports cooling and heating, while the DN338A is designed specifically for cold drinks.
The DN338 and DN338A feature:
Capacity: 16L × 3
The three independent beverage containers allow operators to offer three different drinks simultaneously, increasing beverage variety and service efficiency.
Advantages:
The DN338 is the multifunctional model, supporting:
This makes it suitable for businesses that need to serve both hot and cold beverages.
The DN338A is designed for cold beverage applications.
Its functions include:
It is suitable for juice shops, cafés, restaurants, hotels and other commercial beverage businesses.
The three transparent tanks allow customers and operators to clearly see the beverages inside.
The three-tank configuration is suitable for offering:
The agitator system continuously stirs the beverage to help maintain a consistent drink condition during operation.
The integrated stirring and spraying functions provide convenient dispensing for commercial beverage service.
Compared with two-tank models, the DN338 series provides an additional beverage compartment while maintaining a compact commercial design.
It is particularly suitable for locations where beverage variety and service efficiency are important.
| Item | Specification |
|---|---|
| Product | Agitator Type Hot and Cold Drinks Machine |
| Model | DN338 |
| Voltage | 220V / 50Hz |
| Power | 580W |
| Refrigerant | R134A |
| Capacity | 16L × 3 |
| Net Weight | 36kg |
| Machine Size | 620 × 450 × 635mm |
| Function | Cooling & Heating, Stirring / Spraying |
| Packing Dimension | 715 × 525 × 790mm |
| Packing Volume | 0.30 m³ |
| Gross Weight | 40kg |
| Item | Specification |
|---|---|
| Product | Agitator Type Cold Drinks Machine |
| Model | DN338A |
| Voltage | 220V / 50Hz |
| Power | 580W |
| Refrigerant | R134A |
| Capacity | 16L × 3 |
| Net Weight | 36kg |
| Machine Size | 620 × 450 × 635mm |
| Function | Stirring / Spraying |
| Packing Dimension | 715 × 525 × 790mm |
| Packing Volume | 0.30 m³ |
| Gross Weight | 40kg |
The DN338 / DN338A Agitator Type Drinks Machine is designed for commercial beverage businesses that require multiple drink options and efficient beverage service.
With three independent 16L tanks, the machine provides a total nominal capacity of 48L, allowing three different beverages to be prepared and served simultaneously.
The DN338 combines cooling and heating functions with stirring and spraying, providing greater flexibility for hot and cold beverage applications.
The DN338A is designed for cold drinks and incorporates stirring and spraying functions for efficient chilled beverage service.
With a machine size of 620 × 450 × 635mm, the three-tank configuration provides expanded beverage capacity while maintaining a practical commercial footprint.
Serve three different juice flavors simultaneously and improve beverage service efficiency.
Suitable for fruit drinks, juices and other commercial beverages.
Can be installed at beverage counters or used as part of a self-service drink station.
Three tanks allow multiple beverage options to be offered simultaneously.
Suitable for businesses with high beverage turnover and multiple drink selections.
The three-tank configuration is useful when several beverage choices need to be provided from one machine.
Three independent beverage containers allow three different drinks to be served simultaneously.
The three 16L tanks provide a combined nominal capacity of approximately 48L.
Supports both hot and cold beverage applications.
Dedicated option for businesses mainly serving chilled beverages.
Supports beverage circulation and convenient dispensing.
Ideal for businesses that want to offer more flavors without installing multiple machines.
The machine measures 620 × 450 × 635mm, providing three beverage tanks in a practical footprint.
Choose DN338 for hot-and-cold applications or DN338A for cold drinks.
The series includes DN338 and DN338A.
DN338 supports cooling and heating, as well as stirring and spraying.
DN338A is designed for cold drinks and provides stirring and spraying functions.
Both models have a capacity of 16L × 3, providing a combined nominal capacity of approximately 48L.
Yes. The machine has three independent 16L beverage tanks, allowing three different beverages to be displayed and served simultaneously.
Yes. DN338 supports both cooling and heating.
Yes. DN338A is the cold-drinks version and is designed for chilled beverage applications.
DN338 provides:
DN338A provides:
Both models are specified with R134A refrigerant.
The machine dimensions are 620 × 450 × 635mm.
The net weight is 36kg for both DN338 and DN338A.
The packing dimensions are 715 × 525 × 790mm.
The gross weight is 40kg.
It is suitable for juice shops, cafés, restaurants, hotels, buffets, fast-food shops and commercial beverage stations.
Choose DN338 if you need both hot and cold beverage functions.
Choose DN338A if your business mainly serves cold beverages.
The three-tank design provides an additional beverage option, allowing operators to serve three flavors simultaneously and offering greater flexibility for busy commercial beverage businesses.
