| Model | FMG-15-C | FMG-20-C | FMG-25-C |
|---|---|---|---|
| Product Type | Open Air Multideck Display Refrigerator | Open Air Multideck Display Refrigerator | Open Air Multideck Display Refrigerator |
| Voltage | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |
| Rated Power | 1900 W | 1900 W | 1900 W |
| Temperature Range | 2–10°C | 2–10°C | 2–10°C |
| Cooling System | Air Curtain Cooling | Air Curtain Cooling | Air Curtain Cooling |
| Refrigerant | R134A | R134A | R134A |
| Number of Shelves | 4 | 4 | 4 |
| Machine Dimensions | 1500 × 850 × 2050 mm | 1800 × 850 × 2050 mm | 2500 × 850 × 2050 mm |
| Packing Dimensions | 1550 × 900 × 2150 mm | 1850 × 900 × 2150 mm | 2550 × 900 × 2150 mm |
| CBM | 3.00 | 3.58 | 4.93 |
Note: The uploaded specification lists 1900 W input power for all three models. If this differs from your factory specifications, it is recommended to verify the power rating before publishing.
The FMG-C Series Commercial Open Air Display Refrigerator is built for retailers seeking reliable refrigeration with an attractive merchandising solution. The open-front cabinet allows customers to browse products easily, while the air curtain cooling system maintains consistent temperatures throughout the display area. Its clean white appearance complements modern retail environments and enhances product presentation.
The FMG-C Series is suitable for:
Ideal for displaying:
Modern retailers require refrigeration equipment that combines product visibility, reliable cooling and flexible merchandising. The FMG-C Series addresses these needs with an efficient air curtain system that helps maintain stable temperatures while allowing customers direct access to products. Four adjustable shelves accommodate different product sizes, and multiple cabinet widths enable distributors and retailers to optimize store layouts. The durable commercial construction supports continuous operation in busy retail environments while helping reduce maintenance costs.

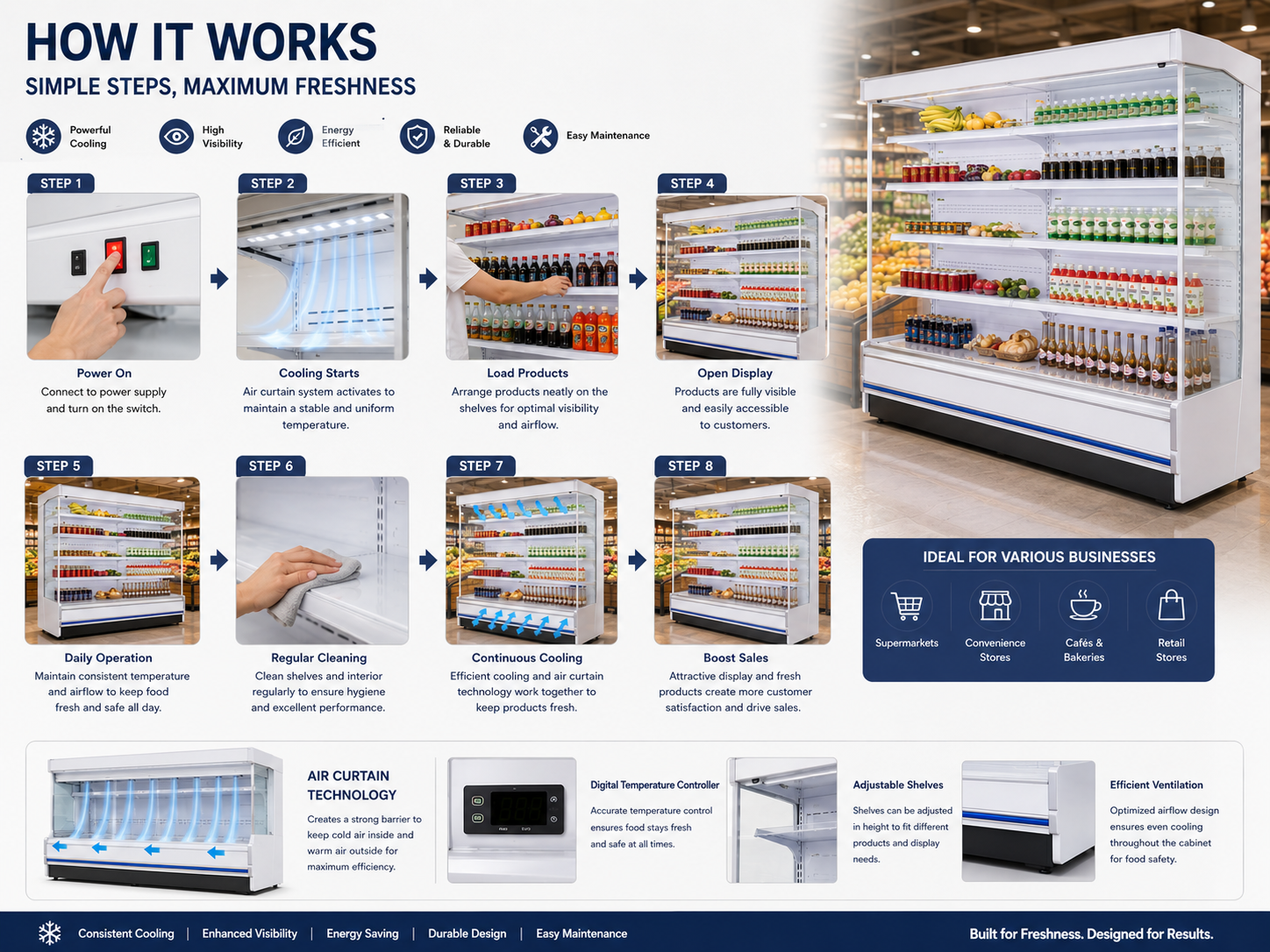

Step 1: Position the refrigerator on a flat, well-ventilated surface.
Step 2: Connect the unit to a 220V / 50Hz power supply.
Step 3: Allow the cabinet to cool to the recommended 2–10°C operating temperature before loading products.
Step 4: Arrange products evenly across the shelves without blocking the air curtain outlet.
Step 5: Leave adequate space between products to ensure proper cold air circulation.
Step 6: Replenish merchandise regularly using the FIFO (First In, First Out) method.
Step 7: Monitor cabinet temperature throughout daily operation.
Step 8: Clean the shelves, condenser and air vents regularly to maintain refrigeration efficiency and product hygiene.
An open air display refrigerator allows customers to access products directly without opening doors, creating a more convenient shopping experience while supporting continuous refrigerated merchandising through an efficient air curtain cooling system.
The FMG-C Series is suitable for dairy products, beverages, fresh fruit, vegetables, sandwiches, desserts, salads, packaged foods and other chilled retail products requiring storage between 2°C and 10°C.
To achieve stable refrigeration performance, avoid blocking the air curtain outlet, distribute products evenly across the shelves, clean the condenser regularly and maintain adequate ventilation around the cabinet.
The FMG-15-C is suitable for smaller convenience stores and cafés. The FMG-20-C provides additional display space for medium-sized supermarkets, while the FMG-25-C offers maximum merchandising capacity for hypermarkets, chain retailers and stores with higher product turnover.
The FMG-C Series combines efficient air curtain refrigeration, modern white cabinet styling, large merchandising capacity, adjustable shelving and multiple cabinet sizes to satisfy the needs of global food retailers. Its commercial-grade construction, reliable cooling performance and flexible display configuration make it a practical solution for supermarkets, grocery chains and convenience stores in international markets.
