Commercial open air produce display refrigerators with air curtain cooling, 2–10°C storage and four shelves for supermarkets and fresh food retailers.

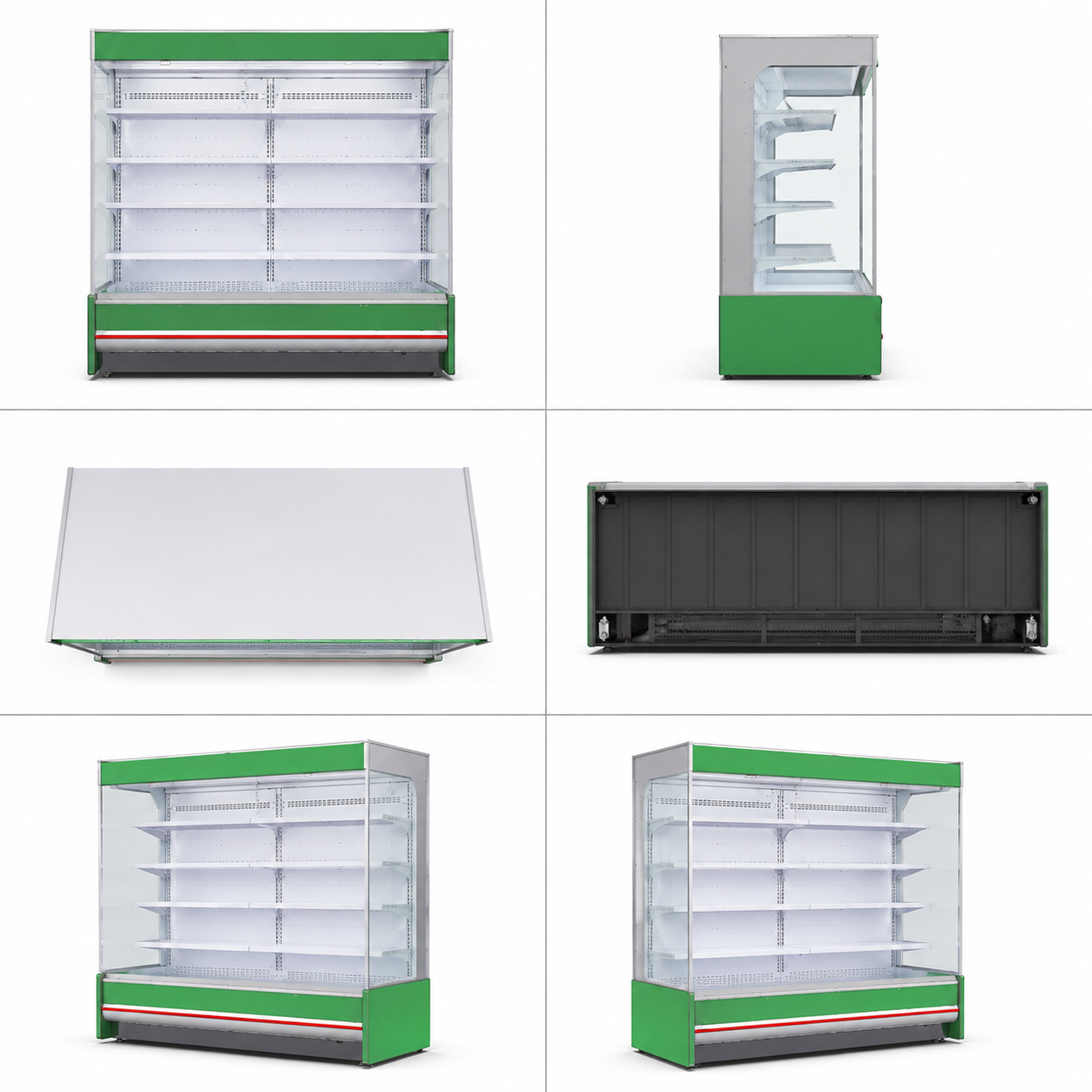

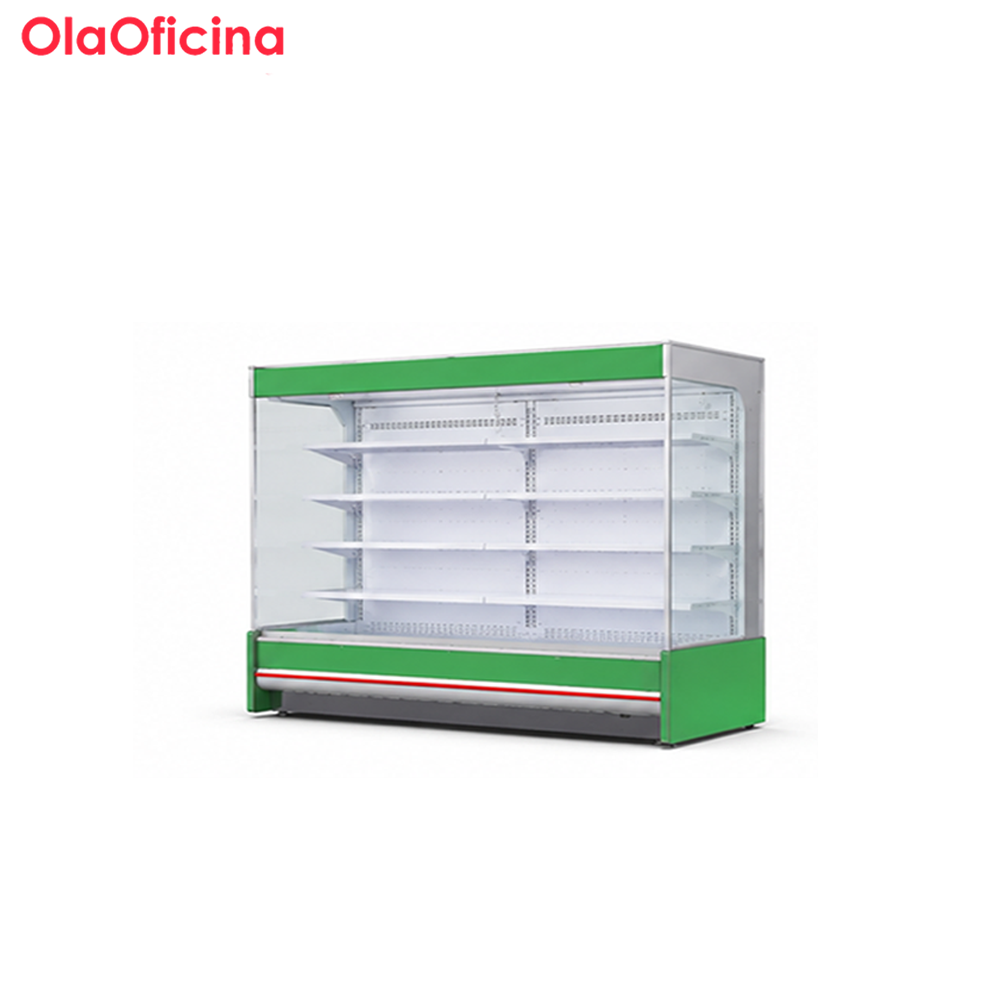

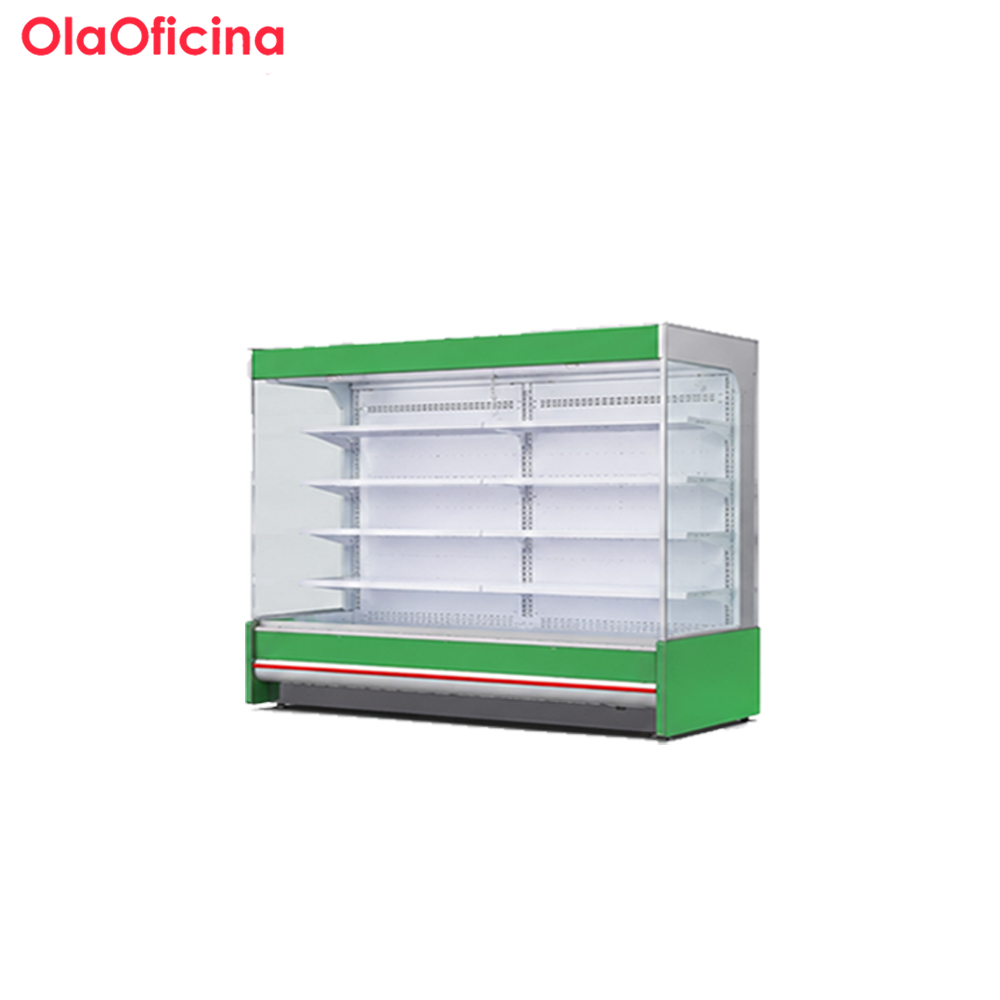

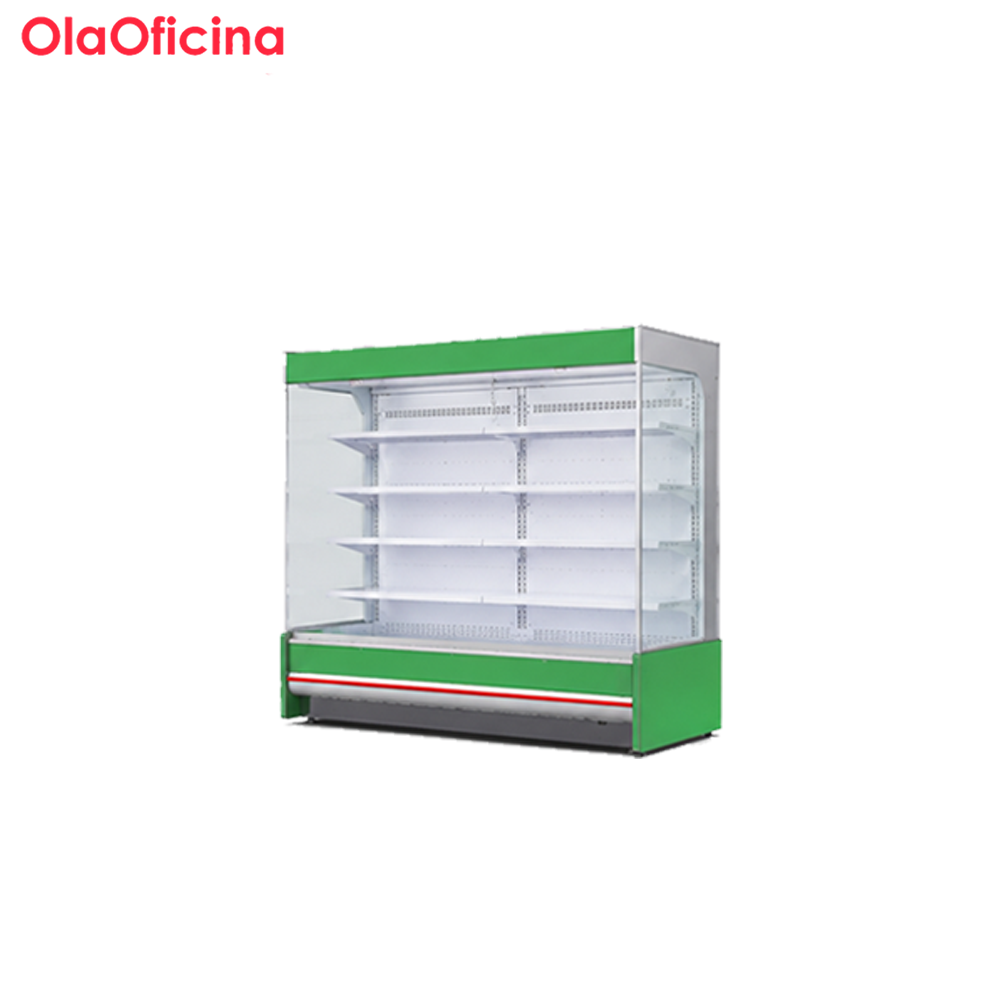

The FMG-D Series Open Air Display Refrigerator is designed specifically for supermarkets, grocery stores and fresh produce retailers. Featuring air curtain refrigeration, four adjustable shelves, and a 2–10°C temperature range, this series keeps fruits, vegetables, beverages and packaged foods fresh while providing maximum product visibility and easy customer access.
| Model | FMG-15-D | FMG-20-D | FMG-25-D |
|---|---|---|---|
| Product Type | Open Air Produce Display Refrigerator | Open Air Produce Display Refrigerator | Open Air Produce Display Refrigerator |
| Voltage | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |
| Rated Power | 1100 W | 1500 W | 1900 W |
| Temperature Range | 2–10°C | 2–10°C | 2–10°C |
| Cooling System | Air Curtain Cooling | Air Curtain Cooling | Air Curtain Cooling |
| Refrigerant | R134A | R134A | R134A |
| Number of Shelves | 4 | 4 | 4 |
| Machine Dimensions | 1500 × 850 × 2050 mm | 2000 × 850 × 2050 mm | 2500 × 850 × 2050 mm |
| Packing Dimensions | 1550 × 900 × 2150 mm | 2050 × 900 × 2150 mm | 2550 × 900 × 2150 mm |
| CBM | 3.00 | 3.97 | 4.93 |
The FMG-D Series Commercial Open Air Display Refrigerator is built to provide reliable refrigeration for fresh food merchandising in busy retail environments. The open-front cabinet allows customers to select products conveniently, while the advanced air curtain cooling system maintains a consistent storage temperature without compromising product accessibility. The spacious display area and adjustable shelving make it suitable for a wide variety of chilled products.
The FMG-D Series is widely used in:
Suitable for displaying:
Retailers worldwide require refrigeration equipment that combines energy efficiency, attractive merchandising and dependable cooling. The FMG-D Series features an efficient air curtain refrigeration system that maintains stable temperatures while allowing customers to access products easily. Adjustable shelving accommodates different product sizes, and multiple cabinet widths provide flexible installation options for stores of all sizes. Its commercial-grade construction supports continuous operation, making it an ideal solution for supermarkets, distributors and retail refrigeration projects.
Step 1: Install the refrigerator on a level floor with sufficient ventilation around the unit.
Step 2: Connect the cabinet to a 220V / 50Hz power supply.
Step 3: Allow the refrigerator to reach the recommended operating temperature (2–10°C) before loading products.
Step 4: Arrange products evenly across the four shelves while maintaining adequate airflow.
Step 5: Do not block the air curtain outlet to ensure consistent cooling performance.
Step 6: Rotate products regularly using the FIFO (First In, First Out) inventory method.
Step 7: Monitor cabinet temperature throughout daily operation.
Step 8: Clean the shelves, condenser and ventilation system regularly to maintain refrigeration efficiency and food hygiene.
The FMG-D Series is suitable for fresh fruit, vegetables, dairy products, beverages, salads, desserts, packaged foods and other chilled products requiring storage between 2°C and 10°C.
The air curtain creates a continuous flow of chilled air across the cabinet opening, helping maintain a stable internal temperature while allowing customers to access products without opening doors.
Its open-front design improves shopping convenience and encourages impulse purchases. Combined with four adjustable shelves and a spacious display area, it provides excellent merchandising flexibility for high-traffic retail environments.

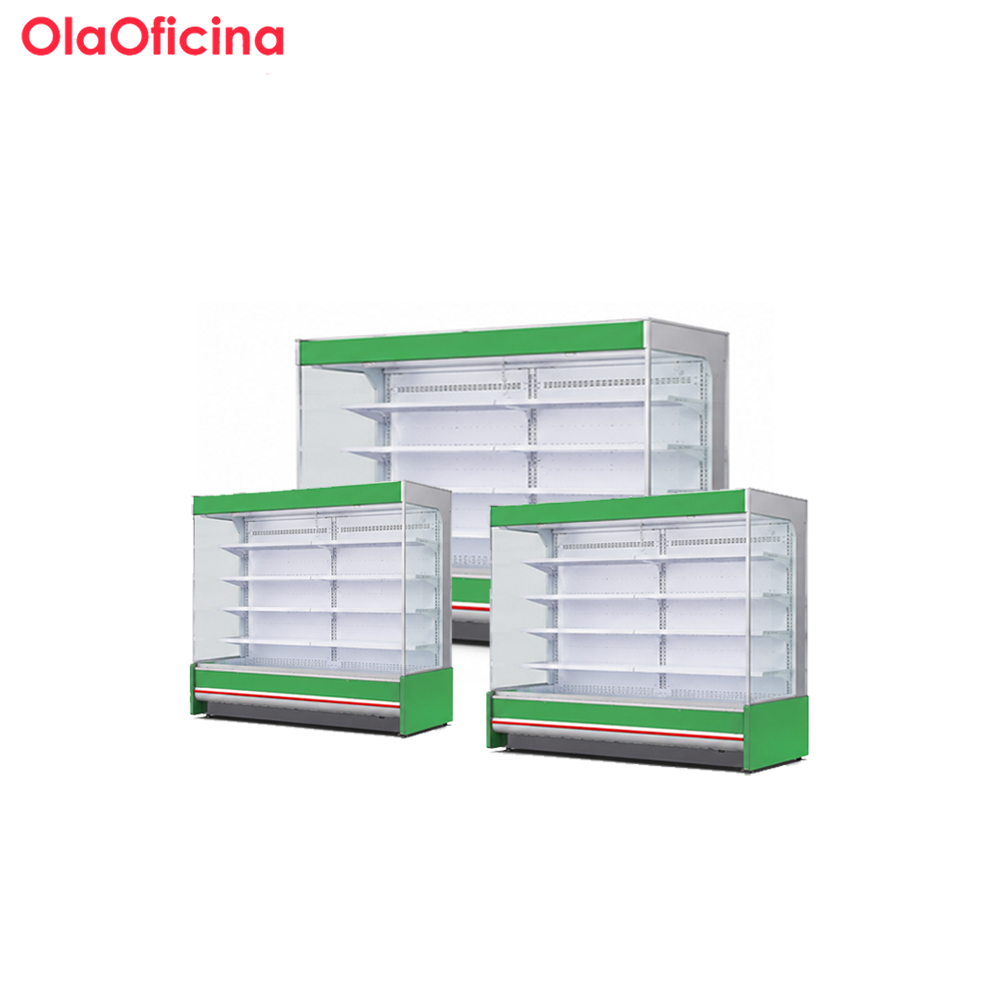

The FMG-15-D is ideal for smaller grocery stores and convenience shops. The FMG-20-D suits medium-sized supermarkets, while the FMG-25-D offers greater display capacity for large supermarkets, retail chains and fresh food markets with higher product turnover.
The FMG-D Series combines efficient air curtain refrigeration, commercial-grade durability, adjustable shelving, multiple cabinet widths and excellent product visibility to meet the demands of global food retailers. Its dependable cooling performance, flexible merchandising options and modern design make it an attractive solution for supermarkets, grocery chains and fresh produce distributors worldwide.
