The JZ-G150 Commercial Gas Jacketed Boiling Pan is a 150L indirect-heating cooking kettle designed for large-batch food preparation in restaurants, central kitchens, catering operations and food-processing facilities.
Supporting both LPG (Liquefied Petroleum Gas) and Natural Gas (NG), the JZ-G150 combines a large 150L capacity with an 800×900×970mm floor-standing commercial design, providing a gas-powered alternative to the electric JZ-E150.
Rated capacity:
150L
The JZ-G150 is designed for large-volume batch cooking, making it suitable for professional kitchens that need to prepare significantly larger quantities than conventional countertop cooking pots.
Typical applications include soups, stocks, sauces, stews and other liquid or semi-liquid foods.
Heating type:
Gas Indirect Heating
The JZ-G150 uses a jacketed cooking structure designed to transfer heat indirectly to the cooking vessel.
This makes it suitable for large commercial batch-cooking applications where broad heat transfer around the vessel is required.
Available gas types:
LPG / Natural Gas (NG)
The supplied specification states compatibility with:
This gives commercial buyers greater flexibility when selecting a configuration for their local gas supply.
The appropriate burner/nozzle, regulator and gas-pressure configuration should be confirmed for LPG or NG before ordering and installation.
Machine dimensions:
800 × 900 × 970mm
The JZ-G150 uses a substantial floor-standing body designed for professional cooking environments.
Its large cooking vessel is positioned at a practical working height, while the main controls and discharge structure are accessible from the front.

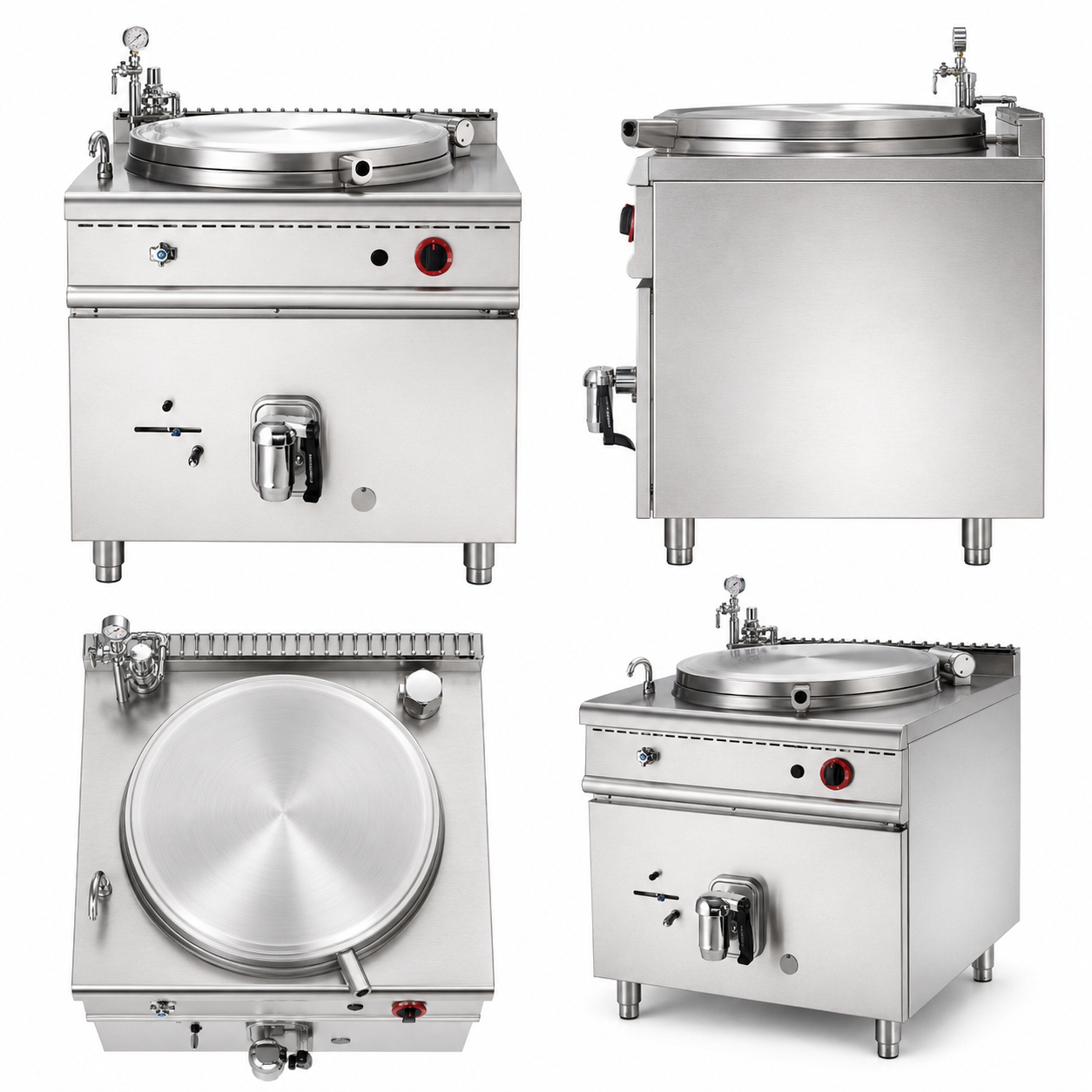

The supplied product image shows a large front-mounted outlet/discharge assembly.
This layout is useful for handling cooked liquid or semi-liquid products after batch preparation.
The exact valve type and outlet diameter should be confirmed before being listed as technical specifications.
Listed machine weight:
135kg
The JZ-G150 has a substantial commercial structure designed around its large cooking vessel and gas indirect-heating system.
This positions the unit for permanent installation in professional kitchens and food-production environments rather than portable countertop use.
| Specification | Details |
|---|---|
| Product Name | Gas Indirect Heating Jacketed Boiling Pan |
| Model | JZ-G150 |
| Heating Type | Gas Indirect Heating |
| Capacity | 150L |
| Gas Type | LPG / Natural Gas (NG) |
| Product Dimensions | 800 × 900 × 970mm |
| Weight | 135kg |
| Installation Type | Floor-Standing |
| Application | Commercial / Food Processing |
| Specification | Details |
|---|---|
| Packing Size | 900 × 1000 × 1050mm |
| Packing Volume | 0.95m³ |
Note: The supplied specifications do not state gas consumption, heating power/BTU rating, operating pressure, temperature range, heating time or jacket medium. These parameters should be confirmed before being added to the final technical datasheet.
The JZ-G150 Commercial Gas Indirect Heating Jacketed Boiling Pan is designed for professional foodservice and food-processing operations requiring large-volume batch cooking.
With a rated capacity of 150L, the JZ-G150 provides the volume required for preparing large batches of soups, stocks, sauces, stews and other liquid or semi-liquid food products.
The machine uses a gas indirect-heating jacketed structure and is available for LPG or Natural Gas (NG). This makes the JZ-G150 particularly suitable for commercial facilities that prefer gas heating or already have an appropriate gas supply.
The unit measures 800×900×970mm and has a listed weight of 135kg. Its floor-standing structure, large cooking vessel and front-accessible controls are designed around professional batch-cooking workflows.
For central kitchens, catering companies, hotels, canteens, restaurants and food-processing facilities, the JZ-G150 provides a large-capacity gas alternative to electric jacketed cooking equipment.
The JZ-G150 can be used for commercial batch preparation of products such as:
For highly viscous, sticky or easily scorched products, suitability should be confirmed according to the exact heating and agitation configuration.
Designed for large-batch commercial cooking and professional food production.
Jacketed configuration provides indirect heat transfer to the cooking vessel.
Supports both Liquefied Petroleum Gas and Natural Gas configurations.
The 135kg commercial structure is suitable for professional production environments.
Front-mounted outlet arrangement provides convenient access for product discharge.
Large commercial format designed around its 150L cooking capacity.
Suitable for soups, stocks, sauces, stews and many other liquid or semi-liquid preparations.
The JZ-G150 is a commercial 150L gas indirect-heating jacketed boiling pan designed for large-batch cooking.
The rated capacity is:
150L.
The supplied specification lists:
LPG (Liquefied Petroleum Gas) and Natural Gas (NG).
Yes. Natural Gas (NG) is included in the supplied gas specification.
Yes. LPG is also listed as a supported gas type.
The JZ-G150 measures:
800 × 900 × 970mm.
The listed weight is:
135kg.
Indirect heating means heat is transferred through the kettle's jacketed structure to the cooking vessel rather than relying only on a small direct-contact heating surface.
Typical applications include soups, broths, stocks, sauces, gravies, curries, stews, porridge and other liquid or semi-liquid food products.
Yes. Its 150L capacity is particularly suited to large restaurants, hotels, catering kitchens, central kitchens, canteens and institutional foodservice operations.
The large-capacity floor-standing configuration can also be used in food-production environments, subject to the requirements of the specific food and production process.
The supplied image shows a large front-mounted discharge/outlet assembly. The exact valve type and size should be confirmed with the manufacturer.
Gas consumption is not provided in the supplied specifications and should be confirmed separately for the LPG and NG configurations.
The supplied data does not provide a kW or BTU/hr heating rating, so a specific value should not be advertised without confirmation.
The listed packing dimensions are:
900 × 1000 × 1050mm.
The supplied packing volume is:
0.95m³.
| Specification | JZ-E150 | JZ-G150 |
|---|---|---|
| Heating Type | Electric Indirect | Gas Indirect |
| Capacity | 150L | 150L |
| Energy Source | Electricity | LPG / Natural Gas |
| Rated Power | 24kW | Not provided |
| Voltage | 380V/50Hz | — |
| Dimensions | 800×900×970mm | 800×900×970mm |
| Weight | Not provided | 135kg |
| Packing Size | 900×1000×1050mm | 900×1000×1050mm |
| Packing Volume | 0.95m³ | 0.95m³ |
| Main Advantage | Electric heating | LPG / NG fuel flexibility |
The two models share the same 150L capacity and 800×900×970mm dimensions. The key difference is the energy source: JZ-E150 uses 24kW electric indirect heating, while JZ-G150 uses gas indirect heating with LPG or Natural Gas options.
