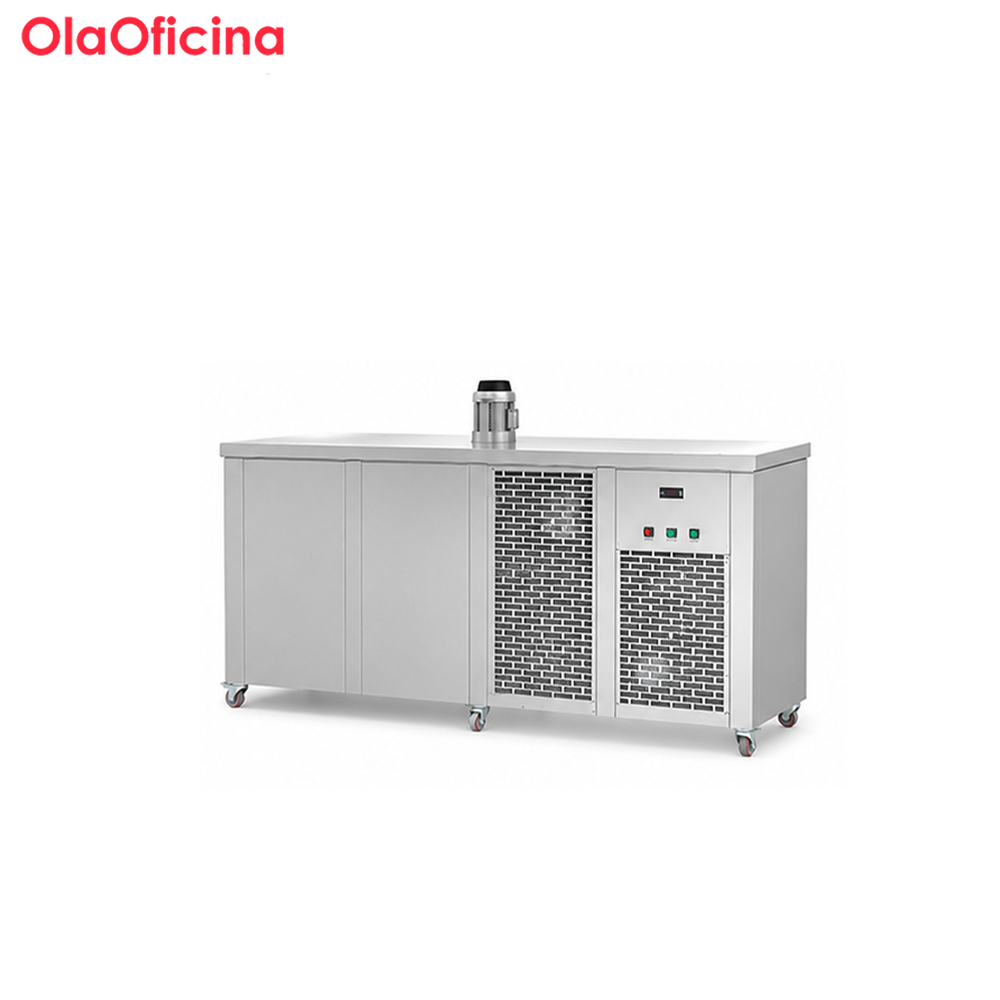

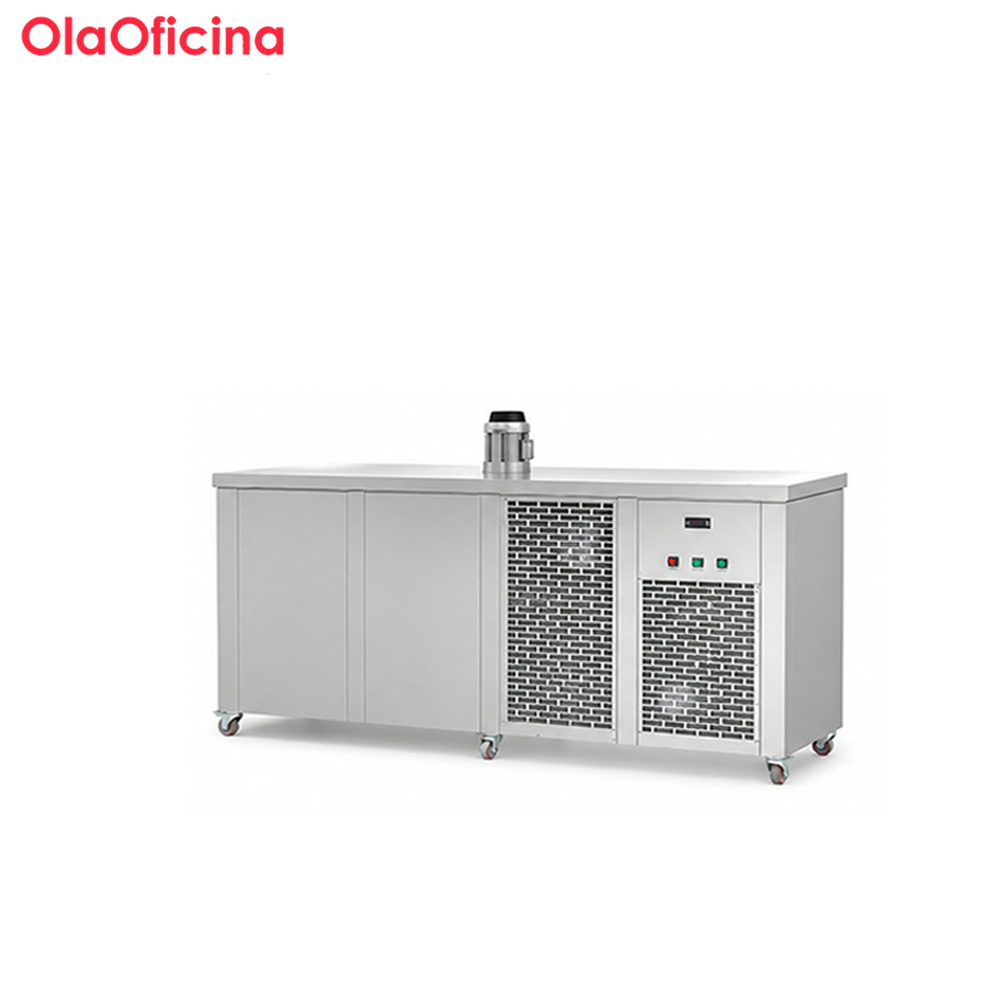

Commercial 1 ton ice block machine with 5kg or 10kg molds, R404A refrigerant and fan cooling for seafood, food processing and industrial cooling.
The Commercial 1 Ton Ice Block Machine Series is engineered for reliable, large-capacity block ice production. Available with 36 molds for 5kg ice blocks or 18 molds for 10kg ice blocks, the series combines R404A refrigeration, fan cooling, and an approximately 4-hour ice-making cycle to meet the daily production needs of seafood markets, food processing plants, cold chain logistics and industrial cooling applications.
| Model | KLS-BZ1T-36 | KLS-BZ1T-18B |
|---|---|---|
| Daily Ice Capacity | 1 Ton | 1 Ton |
| Ice Block Weight | 5 kg | 10 kg |
| Number of Molds | 36 | 18 |
| Machine Dimensions | 3100 × 880 × 1200 mm | 2300 × 850 × 1350 mm |
| Voltage | 220V / 50Hz | 380V / 50Hz |
| Rated Power | 5.5 kW | 5.5 kW |
| Refrigerant | R404A | R404A |
| Ice Storage Temperature | -20°C | -20°C |
| Ice-Making Time | Approx. 4 Hours | Approx. 4 Hours |
| Ice Mold Size | 200 × 80 × 460 mm | 200 × 80 × 460 mm |
| Cooling System | Fan Cooling | Fan Cooling |
| Net Weight | 350 kg | — |
Note: Weight, packing dimensions and shipping volume for the KLS-BZ1T-18B were not provided in the source data.
The Commercial 1 Ton Ice Block Machine Series is designed to produce large quantities of high-density block ice for businesses that require dependable cooling solutions. Equipped with a high-performance refrigeration system and efficient fan cooling, the machine delivers stable freezing performance while reducing operating downtime. Users can choose between 5kg and 10kg block configurations depending on transportation, storage and application requirements.
This machine is widely used in:
Suitable for:
Global buyers increasingly require ice-making equipment that combines high production efficiency with dependable operation and low maintenance costs. The 1 Ton Ice Block Machine Series addresses these requirements through a robust refrigeration system using R404A refrigerant, efficient fan cooling and standardized electrical configurations. The option of either 5kg or 10kg block molds allows distributors and end users to select the most suitable ice size for local market demand, helping improve transportation efficiency, storage flexibility and customer satisfaction.

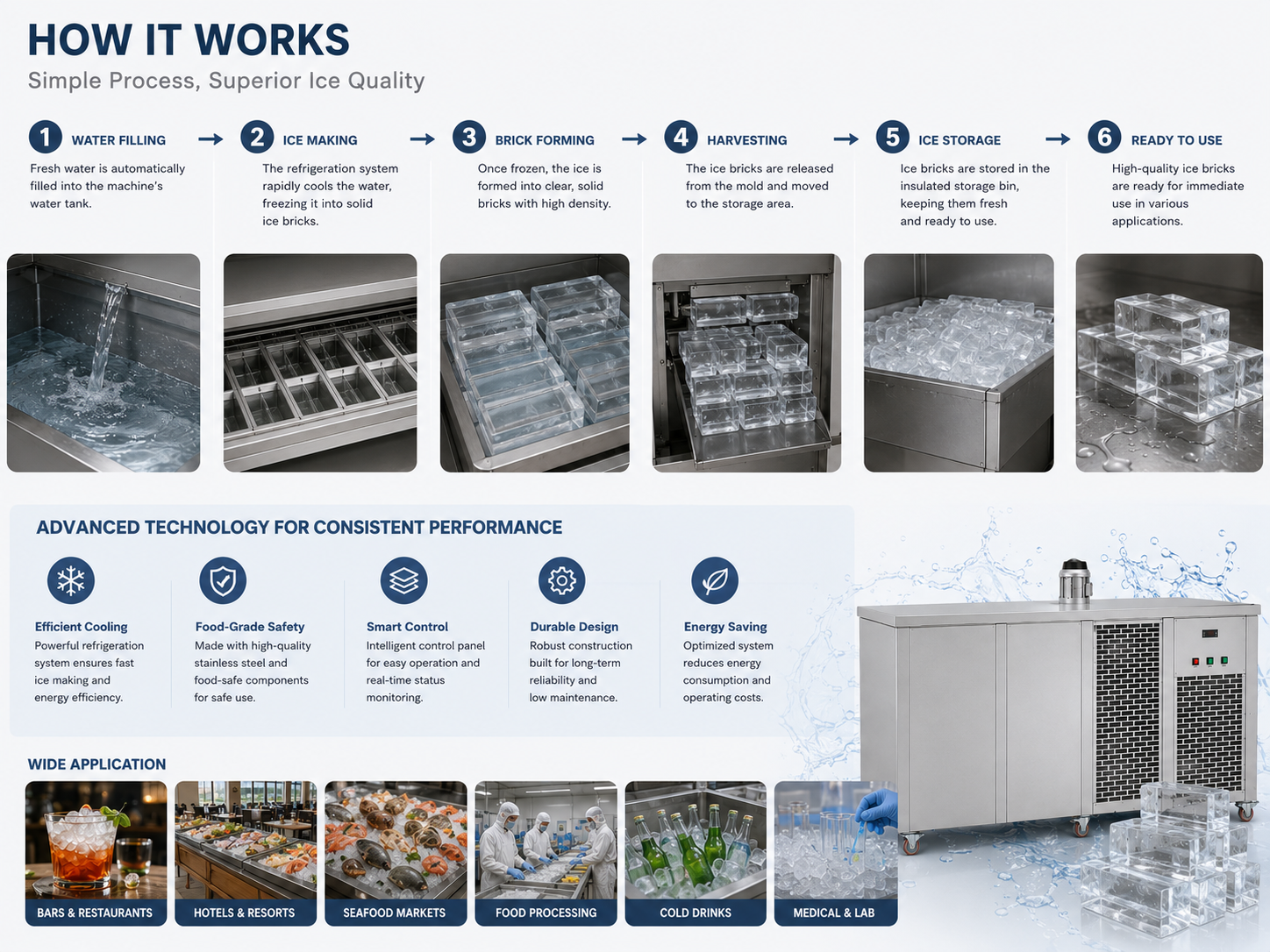

Step 1: Position the machine on a flat surface with adequate ventilation.
Step 2: Connect the machine to the appropriate power supply and water source.
Step 3: Fill the ice molds with clean water.
Step 4: Start the refrigeration system through the digital control panel.
Step 5: Allow the machine to complete the freezing cycle (approximately 4 hours).
Step 6: Release and remove the finished ice blocks carefully.
Step 7: Refill the molds for the next production cycle.
Step 8: Clean the molds and inspect the refrigeration system regularly to maintain production efficiency and food safety.

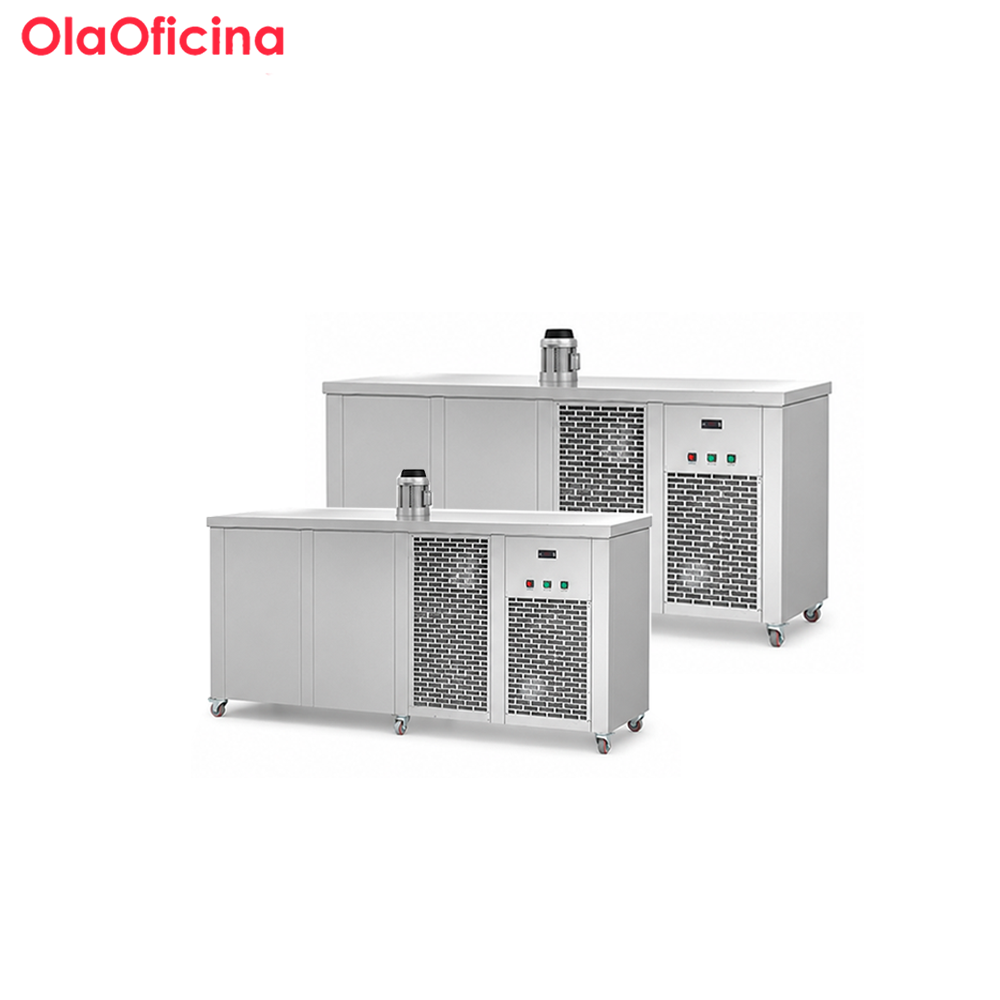

The KLS-BZ1T-36 produces 36 blocks of 5kg ice, making it suitable for businesses requiring smaller blocks for retail distribution and daily handling. The KLS-BZ1T-18B produces 18 blocks of 10kg ice, which are commonly used for seafood transportation, industrial cooling and bulk ice supply.
Each production cycle takes approximately 4 hours, allowing multiple production cycles per day depending on ambient temperature, water conditions and operating environment.
These machines are widely used in seafood processing, fish markets, meat processing, food manufacturing, agricultural transportation, cold chain logistics, supermarkets and industrial cooling, where large block ice provides long-lasting cooling performance.

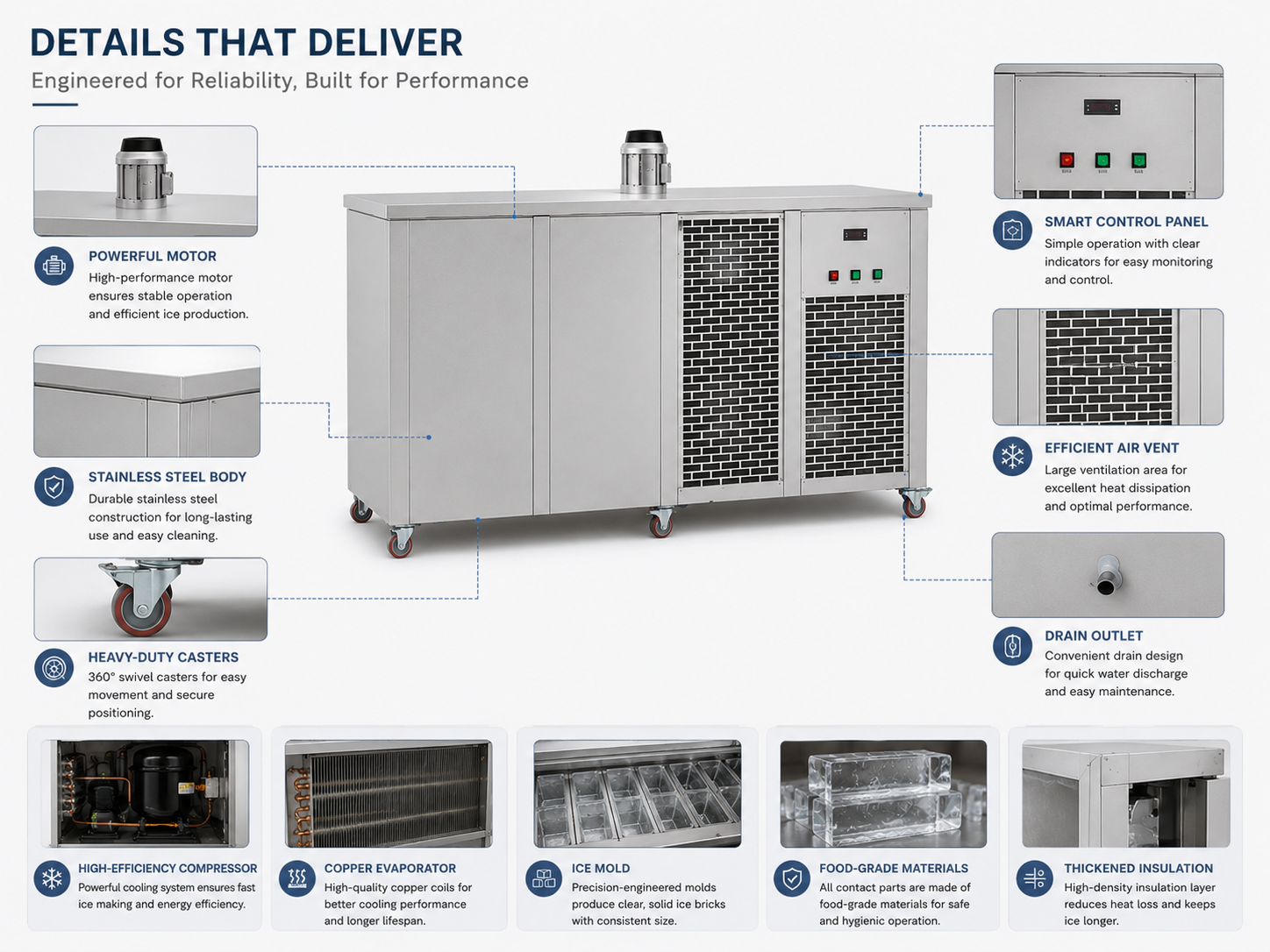

The fan cooling system improves heat dissipation around the refrigeration unit, helping maintain stable operating temperatures during continuous production. This supports reliable ice output while reducing the likelihood of overheating during extended operation.
The 1 Ton Ice Block Machine Series combines high production efficiency, R404A refrigeration, durable commercial construction and multiple block size options to meet diverse market requirements. Its standardized design, straightforward operation and dependable performance make it an excellent choice for distributors serving seafood businesses, food processors, cold chain operators and industrial users worldwide.
