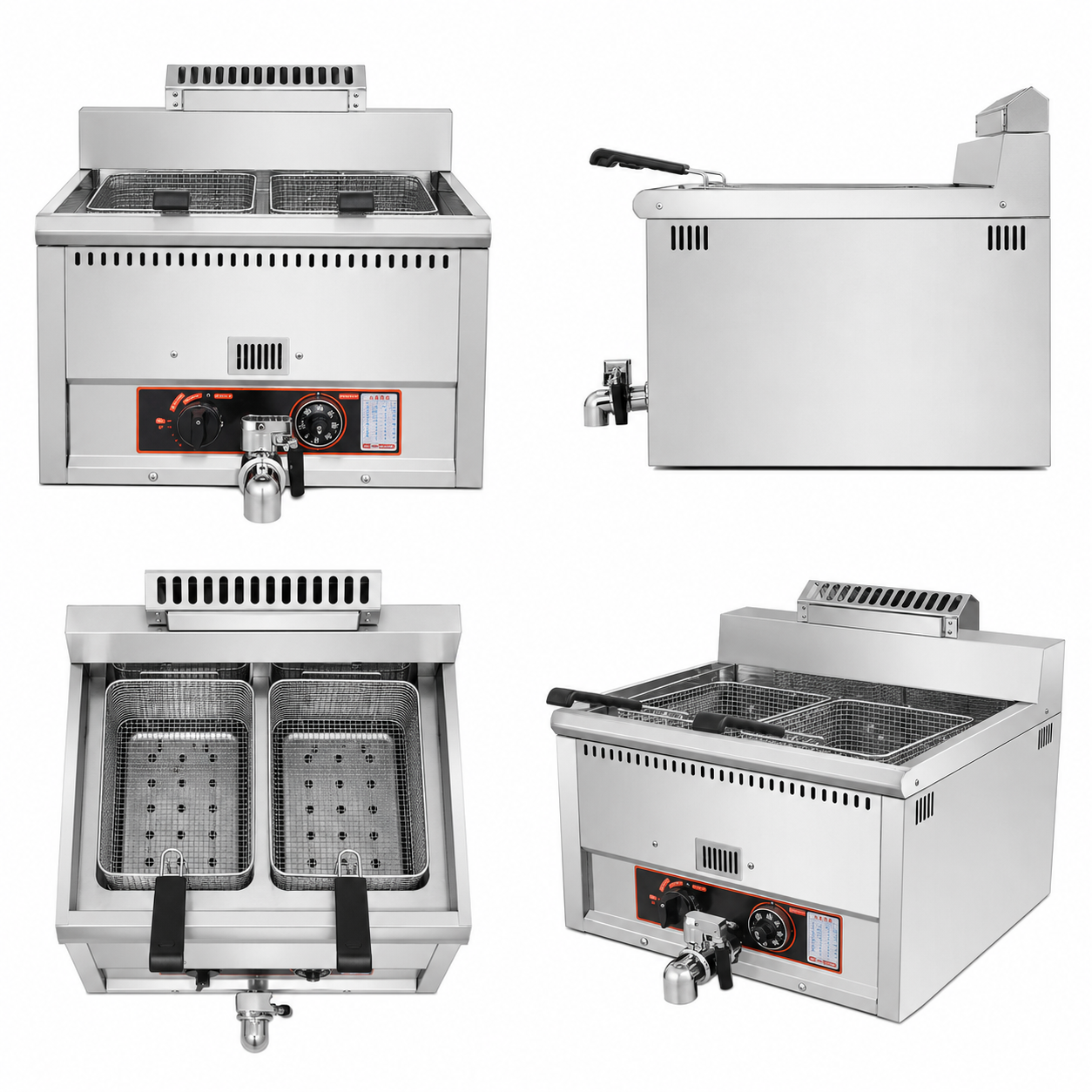

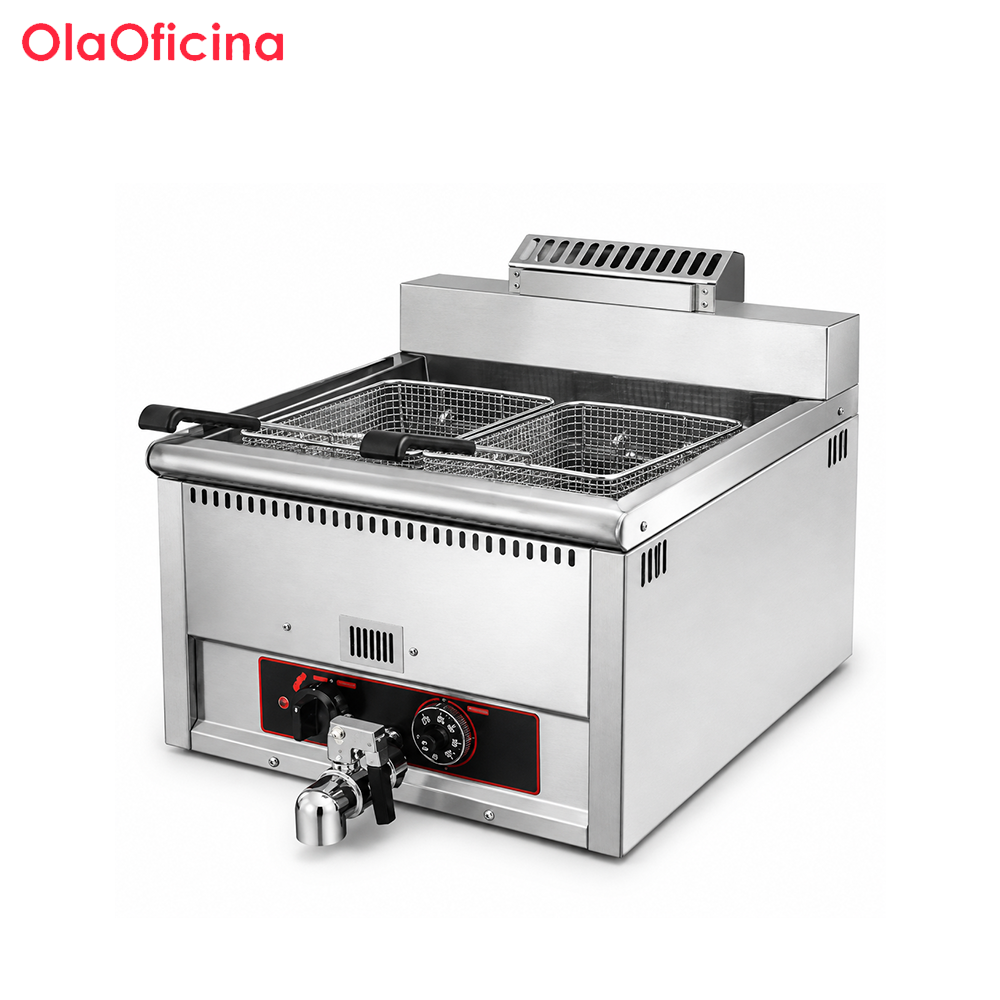

The GH-17L Commercial Gas Fryer is a 17L single-tank, dual-basket LPG deep fryer designed for restaurants and professional foodservice kitchens.
Featuring a spacious 17L frying tank, 2-basket configuration and convenient front oil drain valve, the GH-17L provides flexible batch frying in a practical 500×620×415mm commercial format.
The GH-17L provides a listed capacity of:
17L
Tank size:
435 × 346 × 230mm
The large single tank provides ample space for commercial batch frying while accommodating two frying baskets simultaneously.
Suitable for:
Configuration:
1 Frying Tank + 2 Frying Baskets
The two-basket layout allows operators to divide frying production into smaller batches or handle multiple orders at the same time.
Both baskets share the same oil tank, making this configuration particularly suitable when increased batch flexibility is needed without requiring two completely separate frying tanks.
Specified gas type:
LPG
The GH-17L is designed as a gas-powered commercial fryer for professional kitchens using LPG cooking equipment.
This makes it suitable for restaurants, fast-food outlets, snack shops and other commercial foodservice environments.
The fryer features a front-mounted oil drain valve.
This provides a convenient outlet for draining frying oil when it needs to be replaced or removed from the tank.
The feature is particularly useful for a larger 17L fryer, where manually removing a substantial quantity of oil would be less convenient.
Tank dimensions:
435 × 346 × 230mm
The broad and deep tank provides the working area required for the dual-basket configuration.
Its 230mm tank depth supports commercial deep-frying applications while the 435mm width provides enough space for two baskets.
Overall dimensions:
500 × 620 × 415mm
The GH-17L combines a large 17L frying tank and two baskets within a 500mm-wide commercial body.
This provides greater frying capacity while remaining suitable for countertop or commercial cooking-line installation.
| Specification | Details |
|---|---|
| Product Name | 17L Commercial LPG Gas Fryer |
| Model | GH-17L |
| Configuration | 1 Tank / 2 Baskets |
| Gas Type | LPG |
| Capacity | 17L |
| Tank Size | 435 × 346 × 230mm |
| Product Dimensions | 500 × 620 × 415mm |
| Weight | 18kg |
| Oil Drain Valve | Yes |
| Application | Commercial Foodservice |
Note: The supplied specification does not list rated heating power or operating gas pressure. These values should be confirmed before publishing technical installation requirements.
The GH-17L Commercial Gas Fryer combines a large 17L frying tank, two frying baskets and LPG gas operation in a practical commercial configuration.
Its frying tank measures 435×346×230mm, providing sufficient space for two baskets to operate within the same oil tank. This allows foodservice operators to divide production between smaller batches or handle separate orders simultaneously.
Compared with a single-basket fryer, the dual-basket design provides additional operational flexibility without requiring the extra space of a completely separate second frying tank.
A front-mounted oil drain valve provides convenient access when frying oil needs to be removed or replaced.
The complete fryer measures 500×620×415mm and has a listed weight of 18kg, making it suitable for restaurants, fast-food kitchens, snack shops and other professional foodservice applications.
Provides substantial single-tank capacity for regular commercial frying.
Two baskets provide greater flexibility for smaller batches and multiple orders.
Designed for professional kitchens using LPG cooking equipment.
Front-mounted drain outlet makes oil removal more convenient.
Large tank dimensions provide ample working space for the two-basket configuration.
Suitable for fries, chicken, wings, fish, seafood, nuggets and other deep-fried foods.
Suitable for restaurants, fast-food kitchens, snack shops, catering operations and other professional kitchens.
The GH-17L is a 17L commercial LPG gas fryer featuring one frying tank, two baskets and an oil drain valve.
The listed capacity is:
17L.
The GH-17L has 1 frying tank.
It is equipped with 2 frying baskets.
The tank measures:
435 × 346 × 230mm.
The fryer measures:
500 × 620 × 415mm.
The supplied specification lists:
LPG.
The listed weight is:
18kg.
Yes. It features a front-mounted oil drain valve for convenient oil removal.
Two baskets allow operators to handle separate portions or smaller batches simultaneously, providing more flexibility during busy service periods.
No. Both baskets operate inside the same 17L frying tank, so they share the same frying oil. For completely separate oils or food categories, a two-tank fryer is more appropriate.
The supplied specifications do not list the rated heating power, so an unverified kW value should not be published.
It is suitable for French fries, fried chicken, wings, nuggets, fish, shrimp, seafood, onion rings and other deep-fried foods.
