GF-73H 12L commercial gas fryer with 1 tank, 2 baskets, 520×325×200mm tank and compact 550×460×490mm high-profile countertop design for restaurants and foodservice kitchens.

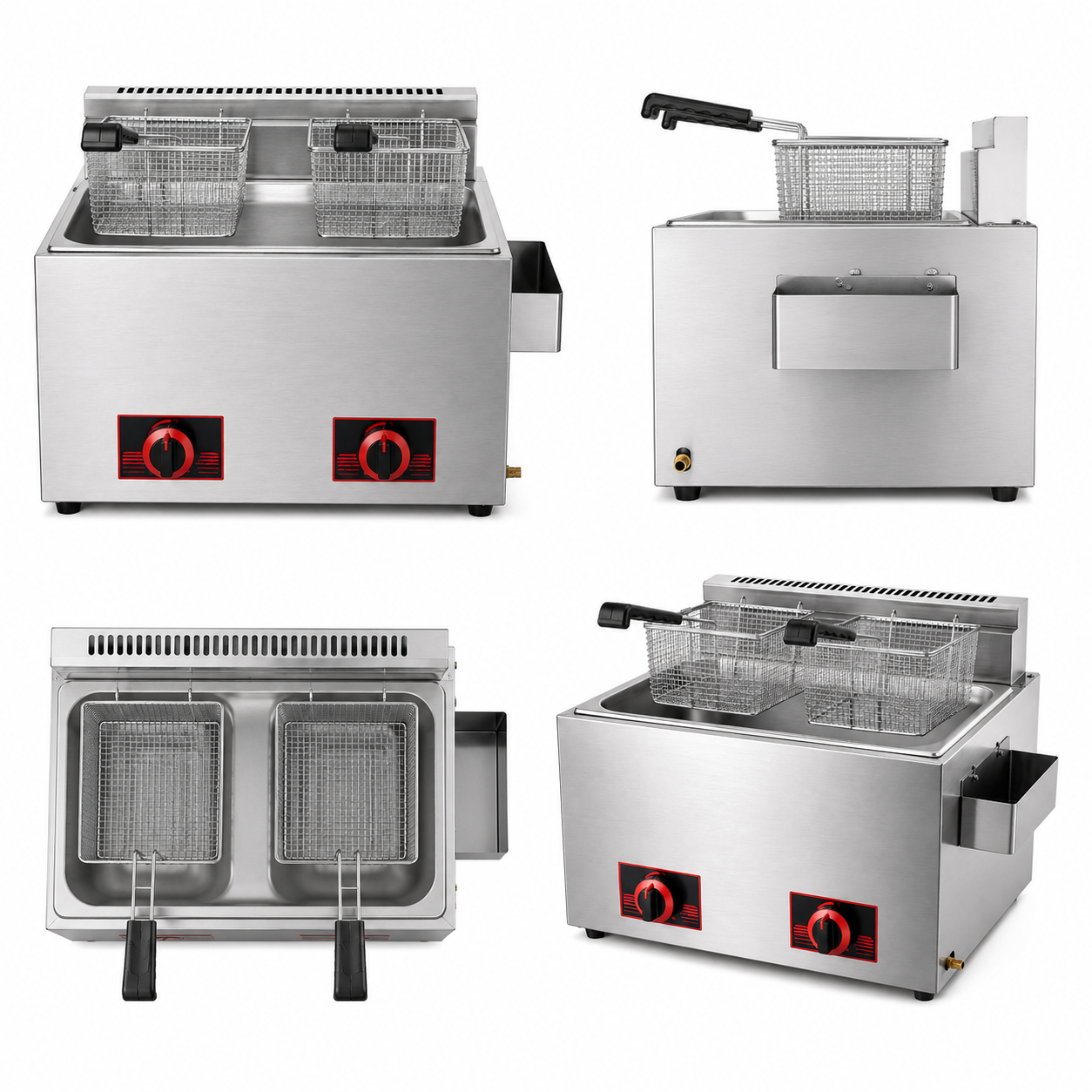

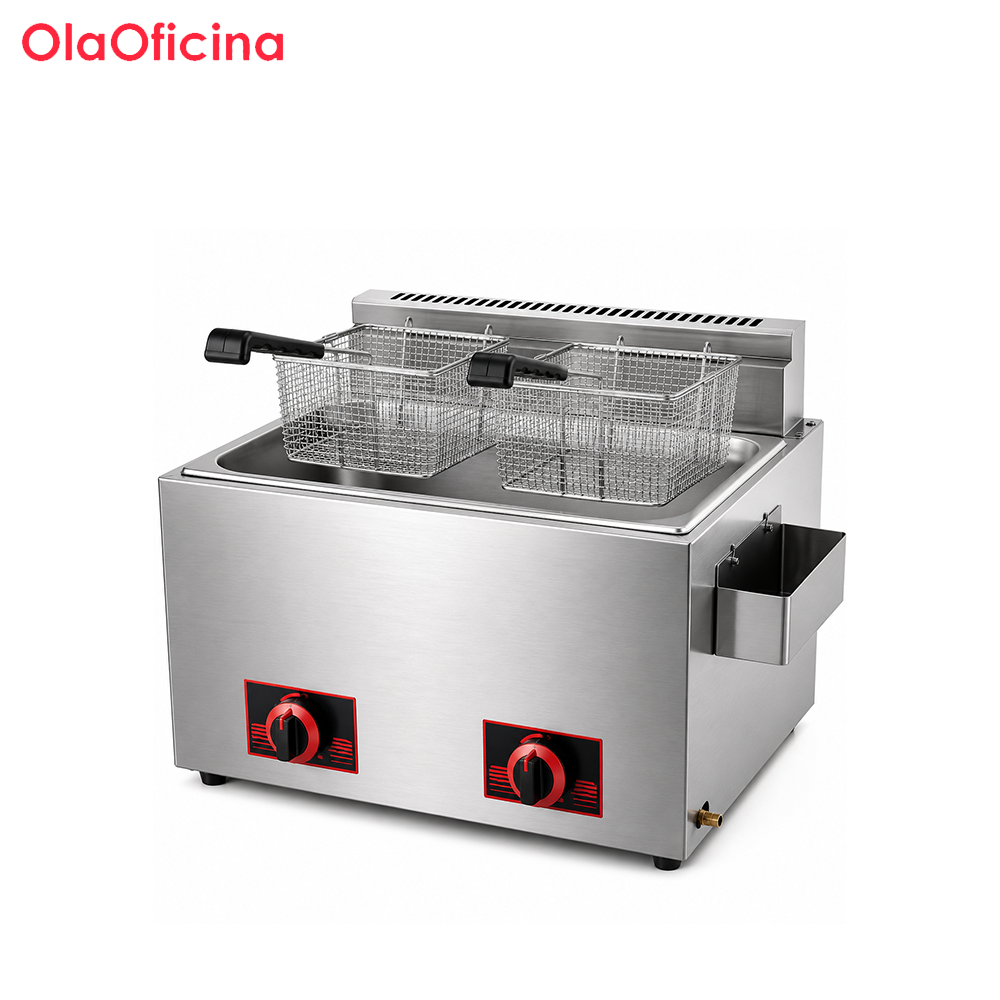

The GF-73H Commercial Gas Fryer is a high-profile 12L single-tank, dual-basket fryer designed for restaurants, fast-food kitchens, snack shops and professional foodservice operations.
Featuring a spacious 520×325×200mm tank, two 240×185×135mm frying baskets and a compact 550×460×490mm countertop body, the GF-73H combines flexible dual-basket frying with a deeper commercial tank design.
The GF-73H provides a listed capacity of:
12L
The larger single tank is suitable for regular commercial frying and provides enough space for two baskets operating side by side.
Typical applications include:
Configuration:
1 Frying Tank + 2 Frying Baskets
Unlike the GF-72H, which uses two separate tanks, the GF-73H places two baskets inside one shared 12L frying tank.
This configuration is particularly useful for businesses that want to divide production into two baskets while using the same frying oil.
Tank dimensions:
520 × 325 × 200mm
The wide tank accommodates two baskets side by side, while the 200mm tank depth provides a deeper frying chamber than lower-profile models in the series.
The single large tank also provides a continuous frying area rather than two separated oil zones.
Basket size:
240 × 185 × 135mm × 2
The dual-basket configuration allows operators to:
Both baskets operate within the same oil tank.
The source identifies the GF-73H as:
加高款 — High-Profile / Heightened Version
Compared with the standard GF-73, the GF-73H features a deeper/taller configuration.
Overall size:
550 × 460 × 490mm
Tank depth:
200mm
This makes the H-version suitable for businesses looking for a deeper commercial frying format.
Despite its 12L capacity and dual baskets, the complete unit measures only:
550 × 460 × 490mm
The countertop format helps conserve floor space and allows the fryer to be integrated alongside other commercial cooking equipment.
| Specification | Details |
|---|---|
| Product Name | 12L Commercial Gas Fryer |
| Model | GF-73H |
| Version | High-Profile / Heightened Type |
| Configuration | 1 Tank / 2 Baskets |
| Capacity | 12L |
| Tank Size | 520 × 325 × 200mm |
| Basket Size | 240 × 185 × 135mm × 2 |
| Listed Power | 18.9 Btu/Hour |
| Product Dimensions | 550 × 460 × 490mm |
| Packing Dimensions | 590 × 470 × 450mm |
| Packing Volume | 0.12m³ |
| Net Weight | 20kg |
| Installation Type | Countertop |
| Application | Commercial Foodservice |
Important: The source lists the heating specification as “18.9Btu/Hour.” This notation appears unusual for a commercial gas fryer. It may potentially mean 18.9k BTU/hr (18,900 BTU/hr), but this cannot be confirmed from the supplied data and should be verified before publication.
The GF-73H Commercial Gas Fryer is designed for professional kitchens requiring the convenience of two frying baskets within one large shared oil tank.
The fryer features a 12L capacity and a 520×325×200mm tank. Two 240×185×135mm baskets fit side by side, allowing operators to prepare separate portions or batches simultaneously while using the same frying oil.
This configuration offers a different workflow from a dual-tank fryer. Instead of separating two types of oil, the GF-73H focuses on maximizing flexibility within one larger frying zone. One basket can be loaded, removed or drained independently while the second basket handles another batch.
As a high-profile version, the GF-73H has an overall height of 490mm and a tank depth of 200mm. The complete unit measures 550×460×490mm, making it suitable for countertop installation in commercial kitchens.
For export and shipping planning, the supplied specifications list 590×470×450mm packing dimensions, 0.12m³ packing volume, and a net weight of 20kg.
One large frying tank provides practical capacity for regular commercial production.
Two baskets allow separate portions or batches to be managed simultaneously.
Wide and deep tank provides ample commercial frying space.
The heightened H-series structure provides a deeper frying configuration.
Provides 12L capacity and two baskets without requiring a floor-standing installation.
Designed for professional gas-powered commercial frying.
Suitable for restaurants, fast-food kitchens, snack shops, cafés and takeaway businesses.
The GF-73H is a high-profile commercial gas fryer featuring one 12L frying tank and two frying baskets.
The listed capacity is:
12L.
The GF-73H has:
1 frying tank.
It has:
2 frying baskets.
The tank measures:
520 × 325 × 200mm.
Each basket measures:
240 × 185 × 135mm.
The GF-73H measures:
550 × 460 × 490mm.
The listed net weight is:
20kg.
The supplied packing dimensions are:
590 × 470 × 450mm.
The listed packing volume is:
0.12m³.
No. The GF-73H has one shared frying tank, so both baskets operate in the same frying oil.
Yes. The two baskets can be used simultaneously for separate batches or portions within the same frying tank.
| Specification | GF-72H | GF-73H |
|---|---|---|
| Configuration | 2 Tanks / 2 Baskets | 1 Tank / 2 Baskets |
| Capacity | 6L + 6L | 12L |
| Tank Size | 325×265×200mm ×2 | 520×325×200mm |
| Basket Size | 240×185×135mm ×2 | 240×185×135mm ×2 |
| Overall Size | 550×460×440mm | 550×460×490mm |
| Weight | 20kg | 20kg |
| Oil Separation | Yes | No |
| Shared Oil Tank | No | Yes |
Choose the GF-72H when separate frying oils or food separation are important. Choose the GF-73H when you prefer one larger shared frying tank with two baskets.
The supplied source lists:
18.9 Btu/Hour
Because this notation is unusual for commercial gas equipment, the exact BTU/hr heating input should be confirmed before publication.
The fryer is suitable for French fries, fried chicken, chicken wings, nuggets, fish, shrimp, onion rings and other deep-fried foods.
